- Thickness = 3mm-50mm (others by arrangement)
- Standard panel sizes = 2440 / 3050x1220mm, 3050x1525mm, can be cut to size
- Max size = 3670x1850mm / MDF = 4200x2100mm (full pallets / half loads, dependent upon core and laminate chosen)
- Wide range of colours & decors
- Hard-wearing surface
- Wide variety of core materials available
- Also available fire retardant to EN 13501 Class B
Overview

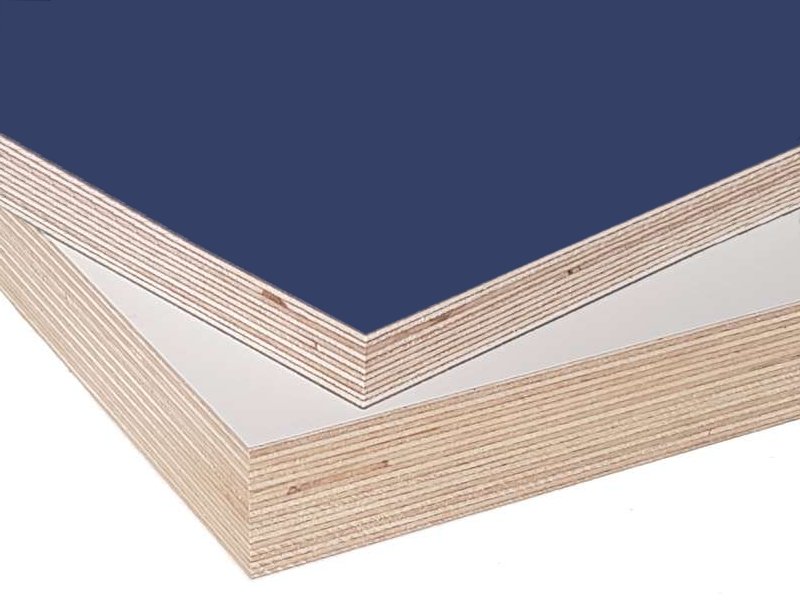

These panels are constructed using a high-performance core material, which is laminated on one or both faces with a durable High-Pressure Laminate (HPL) layer for enhanced wear resistance and structural integrity. In cases where only one face is laminated, a liner/balancer is bonded to the reverse side to maintain optimal flatness and dimensional stability of the panel.
A range of core options are available, including many different types of plywoods, MDF, fire doors, and other materials, designed to meet specific application requirements.
Panels are available in standard commercial sizes such as 2440x1220mm, 3050x1220mm, and 3050x1525mm, or can be custom-cut and machined to precise dimensions based on project specifications
What is HPL?
High pressure laminate is manufactured in a fusing process that results in an extra-hard decorative laminate. The multiple layers of kraft papers used for the decorative surface, inner layers and backing layer are all impregnated with phenolic resin and fused together in a multiple step press operation offering a wide range of decorative effects.
These laminates are then bonded to a core board in a separate process with glue under pressure. Heat is often is used to accelerate the curing process.
Recommended trade laminates
We can supply bespoke production using any laminate you specify, including Altofina, Abet Laminati (Print), Egger, Fenix, Formica, Polyrey, and many more.
Below is our recommended range of trade laminates from Altofina (actual size of thumbnail images = 150mm high). Clicking on image names underlined in red will show an image of a full sheet. (You can order samples direct from the laminate manufacturer here - opens in new window)
As can be seen from the listing below, it is often possible to offer a closest match to colour systems such as RAL Classic, NCS, or Pantone
NCS & RAL references are nearest corresponding match, LRV = light reflectance value (1-100)
Recommended Plain Colours
Black 001
(Satin)- 2440x1220mm
- 3050x1220mm
- 3050x1525mm
- NCS S 9000-N
- RAL 9011
- LRV = 4
Black 002
(Gloss)- 2440x1220mm
- 3050x1220mm
- 3050x1525mm
- NCS S 9000-N
- RAL 9011
- LRV = 4
Black 003
(Matt)- 2440x1220mm
- 3050x1220mm
- NCS S 9000-N
- RAL 9011
- LRV = 4
Black PF1
(Ultra Matt)- 2440x1220mm
- 3050x1220mm
- NCS S 8000-N
- LRV = 8
Black SC1
(Solid Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 8000-N
- LRV = 8
Black SC2
(Solid Gloss)- 2440x1220mm
- 3050x1220mm
- NCS S 8000-N
- LRV = 8
Blue 001
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 4050-R80B
- RAL 5002
- LRV = 10
Blue 007
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2040-R80B
- RAL 5023
- LRV = 33
Blue 011
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2050-B10G
- LRV = 30
Blue 012
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 1030-B
- LRV = 54
Blue 013
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2020-B
- LRV = 24
Blue 014
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2030-B40G
- LRV = 41
Blue 015
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 6020-R80B
- LRV = 11
Brown 004
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2005-Y60
- LRV = 54
Brown 005
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 5005-Y20R
- LRV = 25
Brown 006
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 3005-Y50R
- LRV = 40
Cream 005
(Gloss)- 2440x1220mm
- 3050x1220mm
- NCS S 1005-Y20R
- LRV = 77
Cream 006
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 0804-Y30R
- LRV = 53
Green 006
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 1060-G70Y
- LRV = 45
Green 009
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 1070-G30Y
- LRV = 22
Green 012
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 3050-G
- LRV = 40
Green 013
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 3010-B70G
- LRV = 33
Green 014
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2050-G20Y
- LRV = 11
Green 015
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 6020-B909
- LRV = 50
Grey 001
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2500-N
- RAL 7015
- LRV = 10
Grey 004
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 7502-B
- RAL 9020
- LRV = 72
Grey 016
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 4502-R
- RAL 7037
- LRV = 21
Grey 017
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 3500-N
- LRV = 29
Grey 018
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2502-B
- LRV = 39
Grey 019
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 3000-N
- LRV = 49
Grey 021
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 6502-B
- LRV = 29
Grey 022
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2005-G90Y
- LRV = 15
Grey 023
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 3502-Y
- LRV = 57
Grey 024
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2500-N
- LRV = 38
Grey 025
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2502-R
- LRV = 50
Grey 026
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 1502-B
- LRV = 50
Grey 027
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2500-N
- LRV = 63
Grey 028
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2002-Y
- LRV = 50
Grey 029
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2002-G50Y
- LRV = 56
Grey 031
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 75000-N
- LRV = 57
Grey 032
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 7502-B
- LRV = 11
Grey 033
(Gloss)- 2440x1220mm
- 3050x1220mm
- NCS S 2502-R
- LRV = 10
Grey 034
(Gloss)- 2440x1220mm
- 3050x1220mm
- NCS S 3502-Y
- LRV = 50
Grey 035
(Gloss)- 2440x1220mm
- 3050x1220mm
- 3050x1525mm
- NCS S 5502-B
- LRV = 38
Grey 036
(Gloss)- 2440x1220mm
- 3050x1220mm
- 3050x1525mm
- NCS S 7502-B
- RAL 7037
- LRV = 21
Grey PF1
(Ultra Matt)- 2440x1220mm
- 3050x1220mm
- NCS S 2002-G50Y
- LRV = 57
Grey PF2
(Ultra Matt)- 2440x1220mm
- 3050x1220mm
- NCS S 4502-R
- LRV = 29
Grey PF3
(Ultra Matt)- 2440x1220mm
- 3050x1220mm
- NCS S 6005-G80Y
- LRV = 19
Grey PF4
(Ultra Matt)- 2440x1220mm
- 3050x1220mm
- NCS S 7000-N
- LRV = 15
Orange 002
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 1070-Y70R
- RAL 7015
- LRV = 10
Pink 003
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2050-R20B
- LRV = 27
Red 001
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2070-R
- RAL 3002
- LRV = 12
Red 003
(Gloss)- 2440x1220mm
- 3050x1220mm
- NCS S 2070-R
- RAL 3002
- LRV = 12
Red 004
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 2070-Y90R
- LRV = 14
Terracotta 001
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 4020-Y70R
- LRV = 25
White 001
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 0603-G40Y
- RAL 9010
- LRV = 81
White 002
(Gloss)- 2440x1220mm
- 3050x1220mm
- NCS S 0603-G40Y
- RAL 9010
- LRV = 86
White 003
(Matt)- 2440x1220mm
- 3050x1220mm
- NCS S 0603-G40Y
- RAL 9010
- LRV = 81
White 004
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 0603-G80Y
- RAL 9010
- LRV = 82
White 006
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 0502-G
- RAL 9003
- LRV = 83
White 009
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 0505-R60B
- LRV = 81
White PF1
(Ultra Matt)- 2440x1220mm
- 3050x1220mm
- NCS S 0300-N
- LRV = 90
White PF2
(Ultra Matt)- 2440x1220mm
- 3050x1220mm
- NCS S 1002-R50B
- LRV = 73
White SC1
(Solid Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 0505-R60B
- LRV = 81
White SC2
(Solid Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 0500-N
- LRV = 86
White SC3
(Solid Gloss)- 2440x1220mm
- 3050x1220mm
- NCS S 0505-R60B
- LRV = 81
White SC4
(Solid Gloss)- 2440x1220mm
- 3050x1220mm
- NCS S 0500-N
- LRV = 86
Yellow 004
(Satin)- 2440x1220mm
- 3050x1220mm
- NCS S 1050-Y
- LRV = 61
Recommended Woodgrains

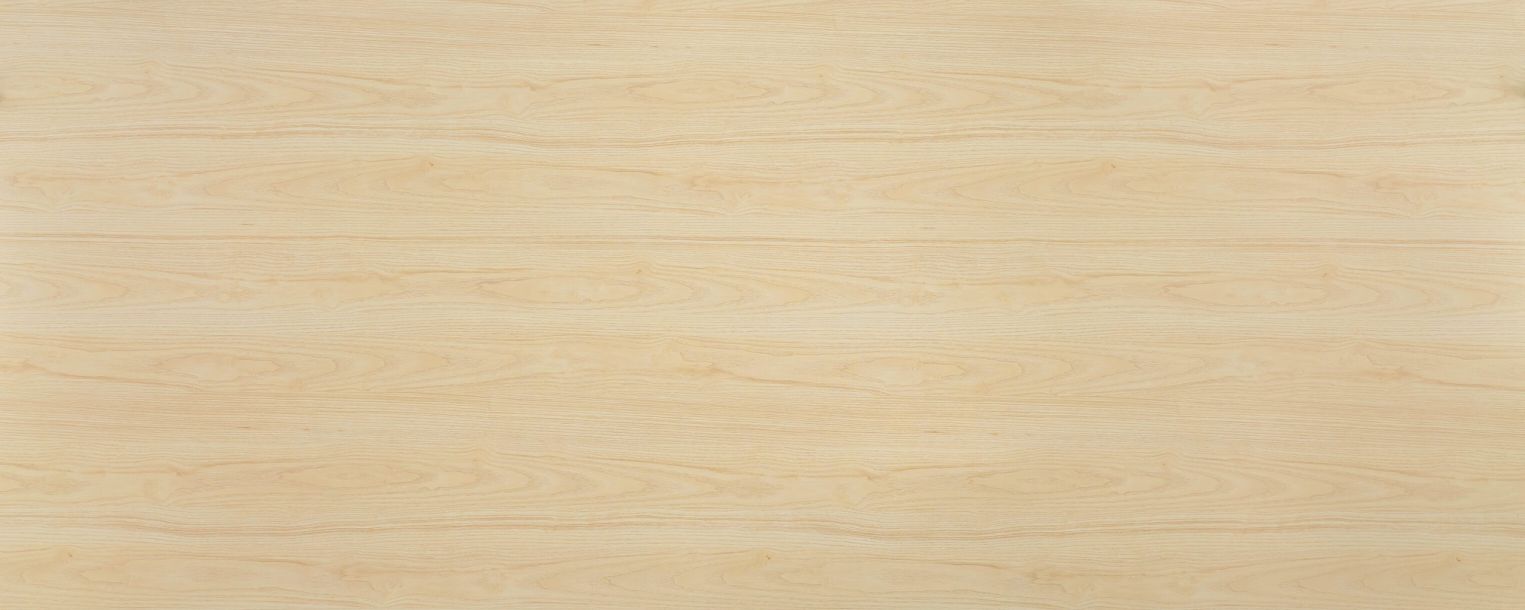

Ash 003
(Satin)- 2440x1220mm
- 3050x1220mm

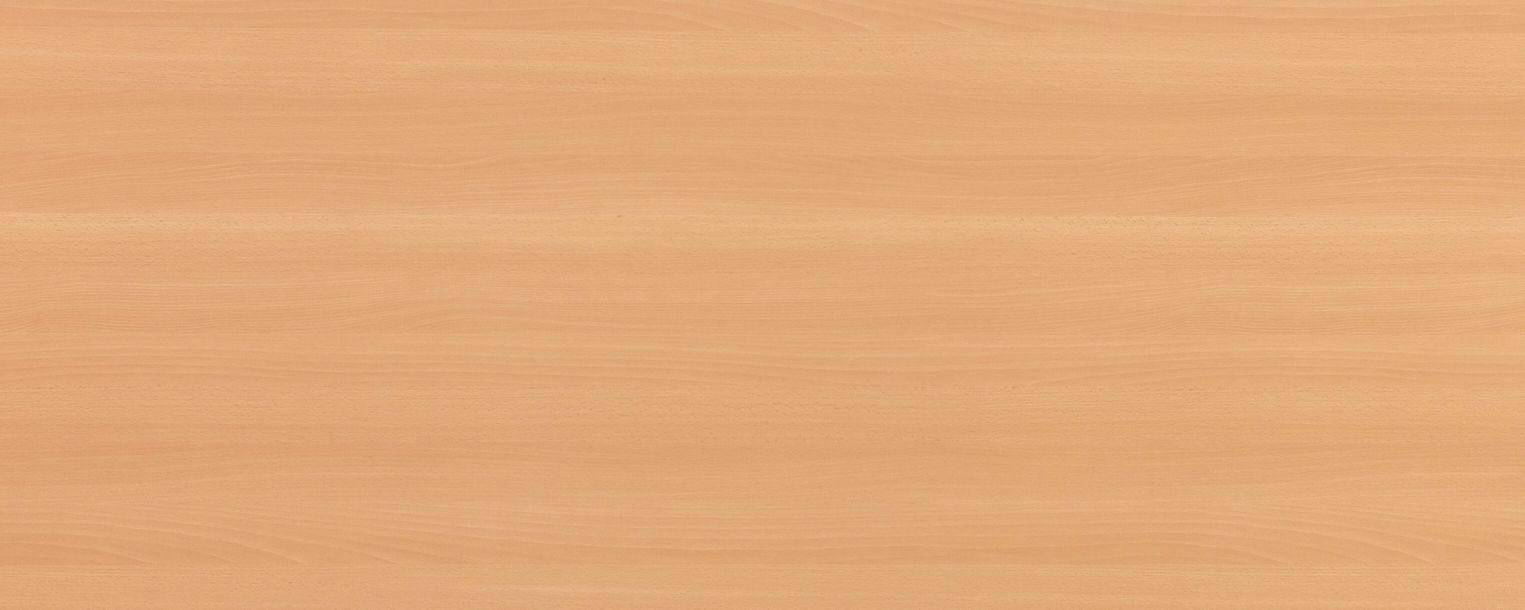

Beech 004
(Satin)- 2440x1220mm
- 3050x1220mm

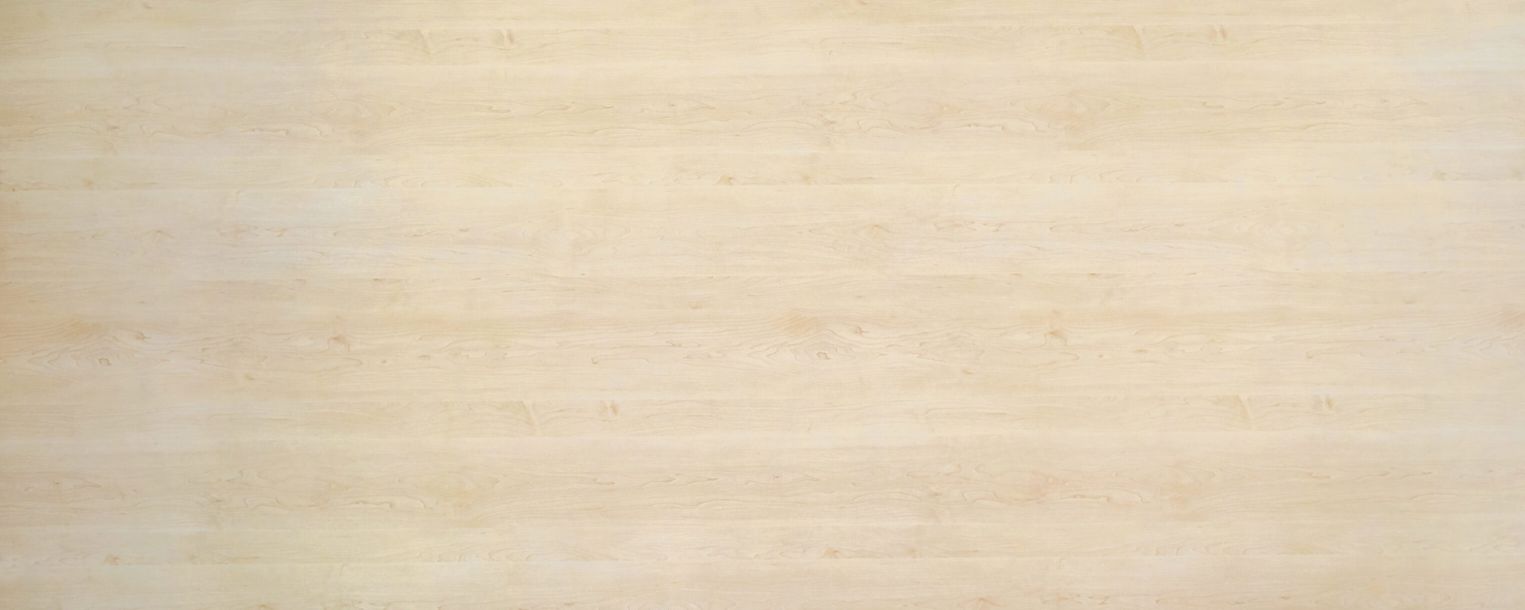

Birch 001
(Satin)- 2440x1220mm
- 3050x1220mm

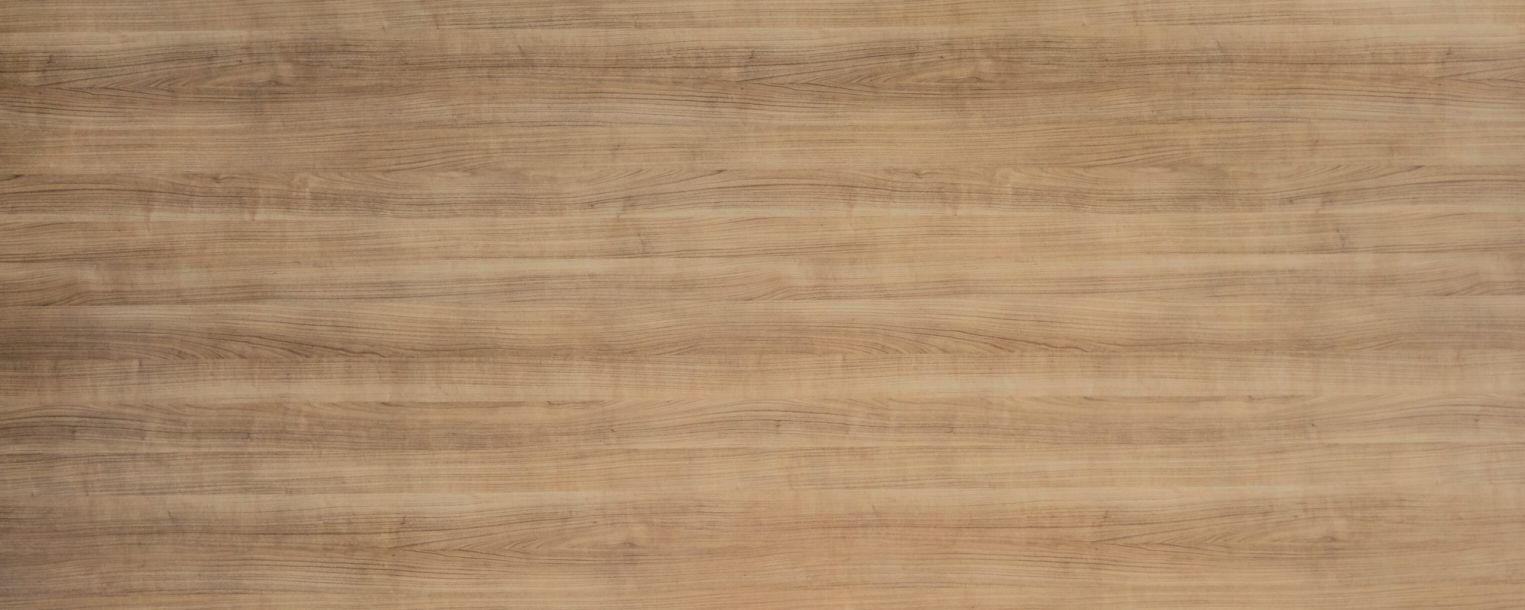

Cherry 005
(Satin)- 2440x1220mm
- 3050x1220mm

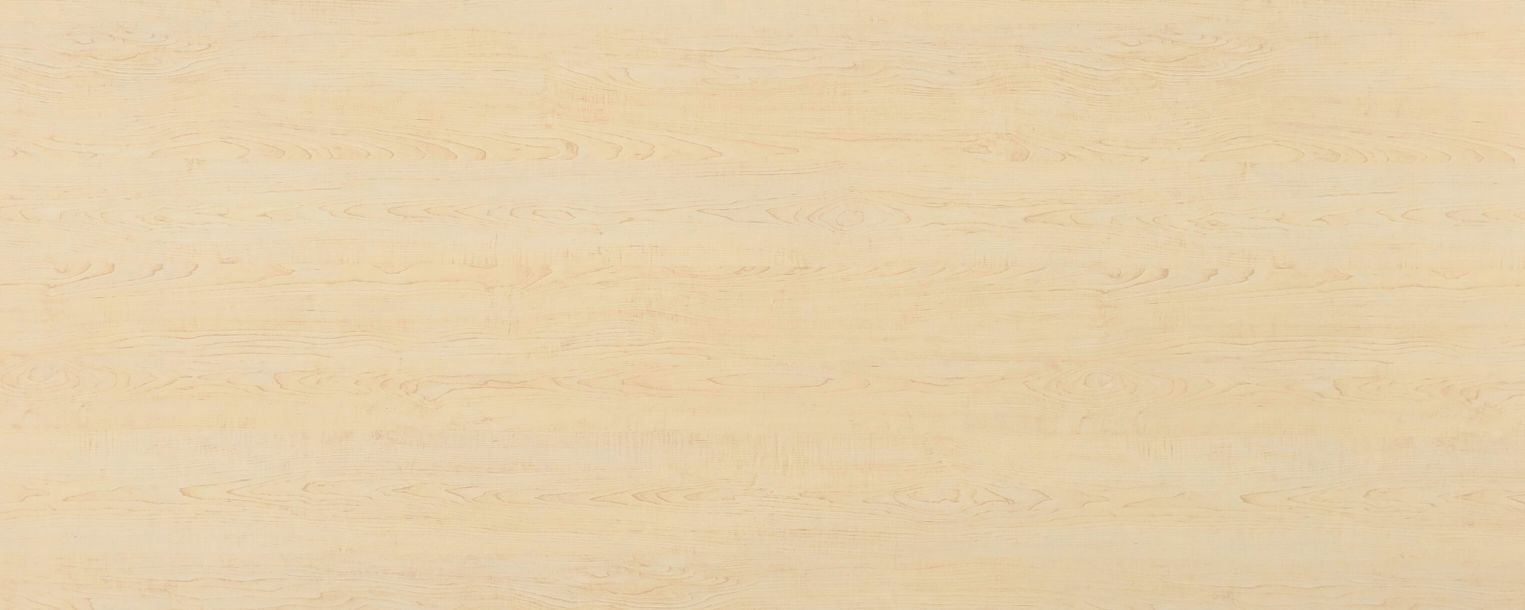

Maple 002
(Satin)- 2440x1220mm
- 3050x1220mm
Oak 005
(Satin)- 2440x1220mm
- 3050x1220mm
Oak 007
(Satin)- 2440x1220mm
- 3050x1220mm

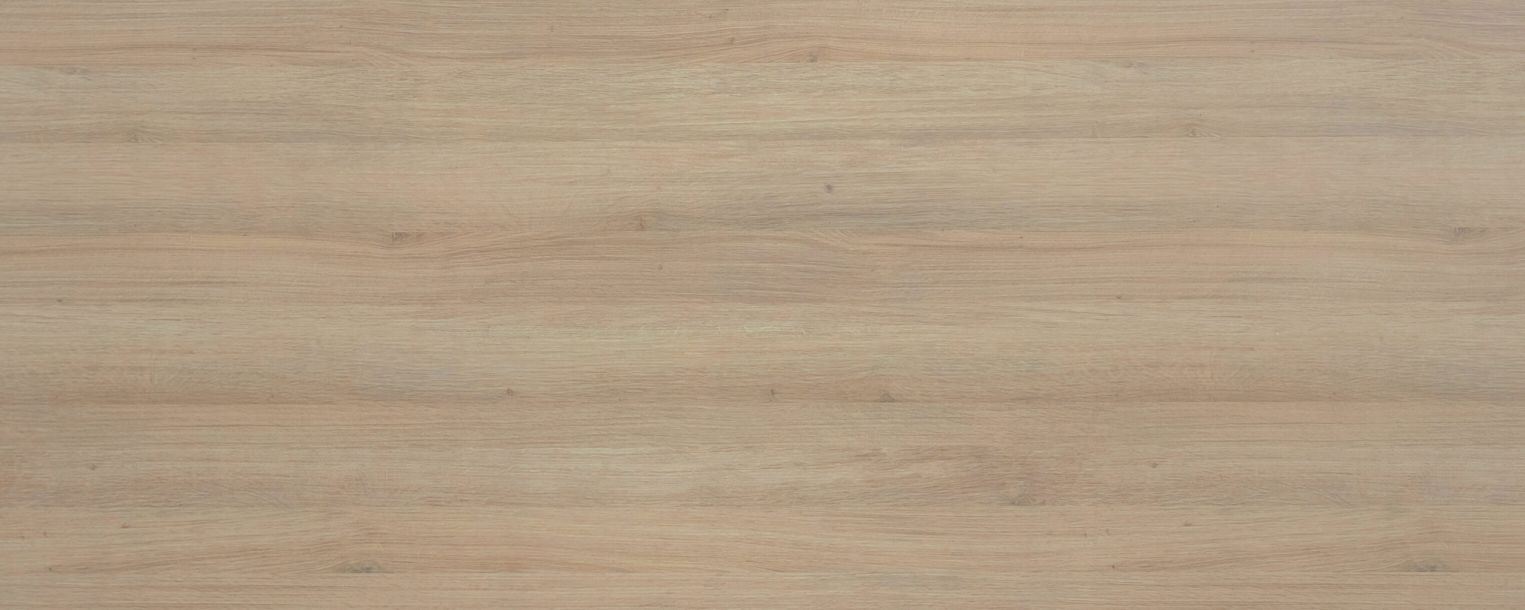

Oak 009
(Satin)- 2440x1220mm
- 3050x1220mm

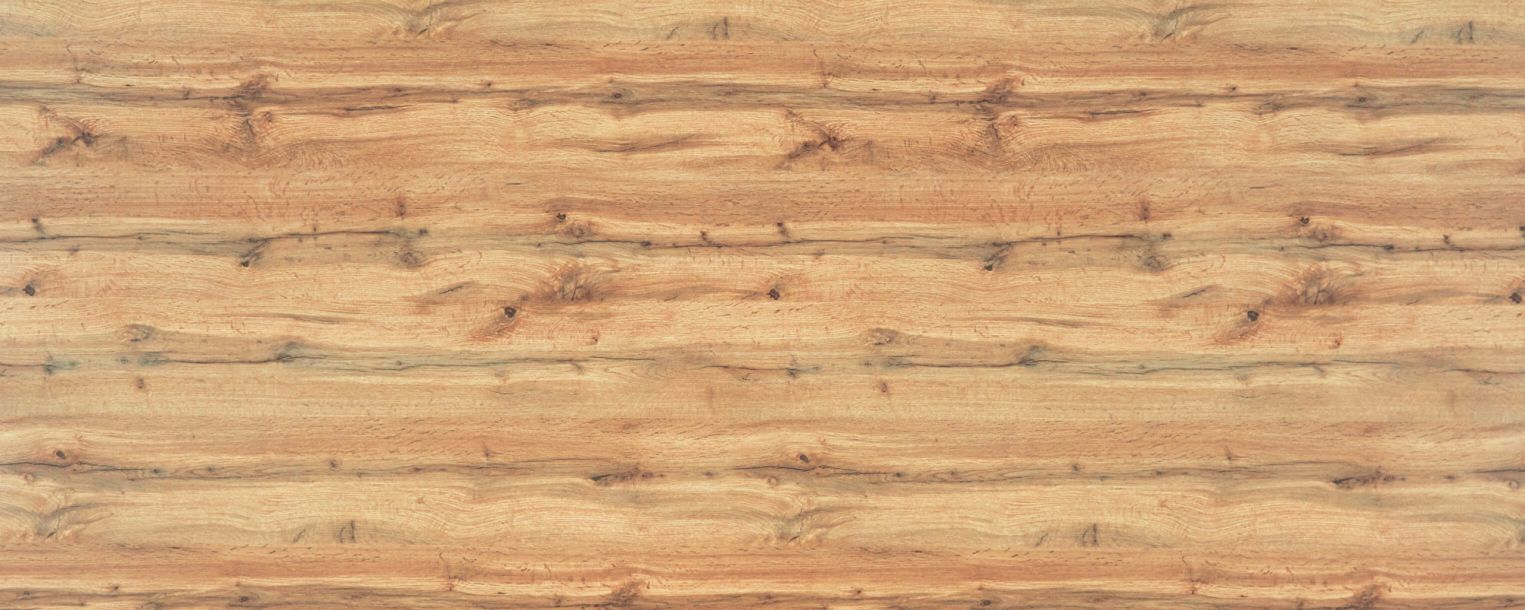

Oak 010
(Satin)- 2440x1220mm
- 3050x1220mm

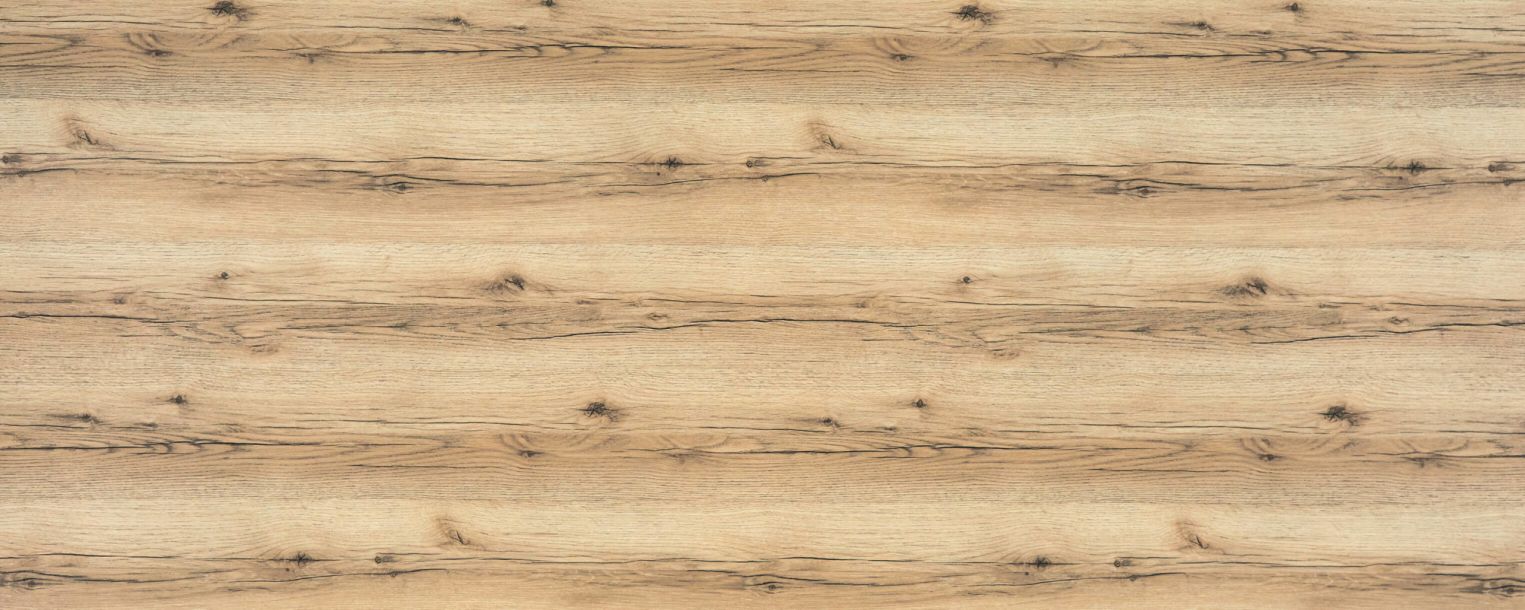

Oak 011
(Satin)- 2440x1220mm
- 3050x1220mm

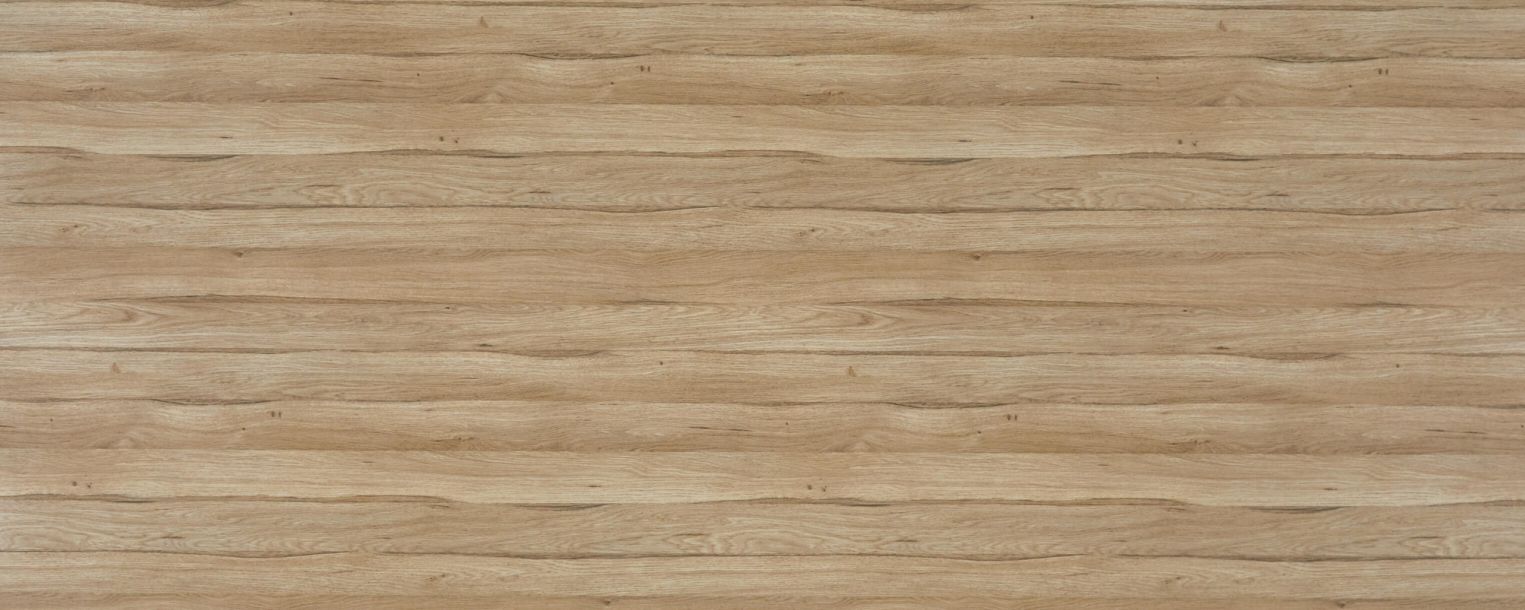

Oak 012
(Str 2)- 2440x1220mm
- 3050x1220mm

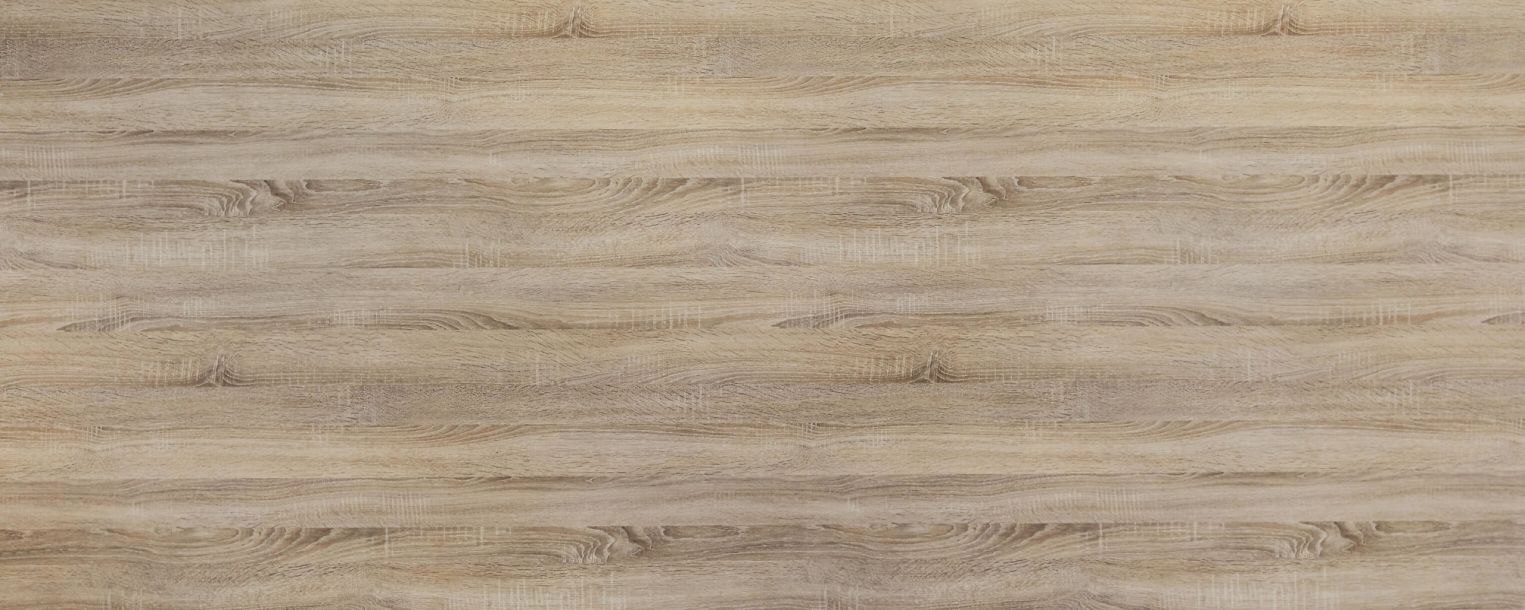

Oak 013
(Satin)- 2440x1220mm
- 3050x1220mm

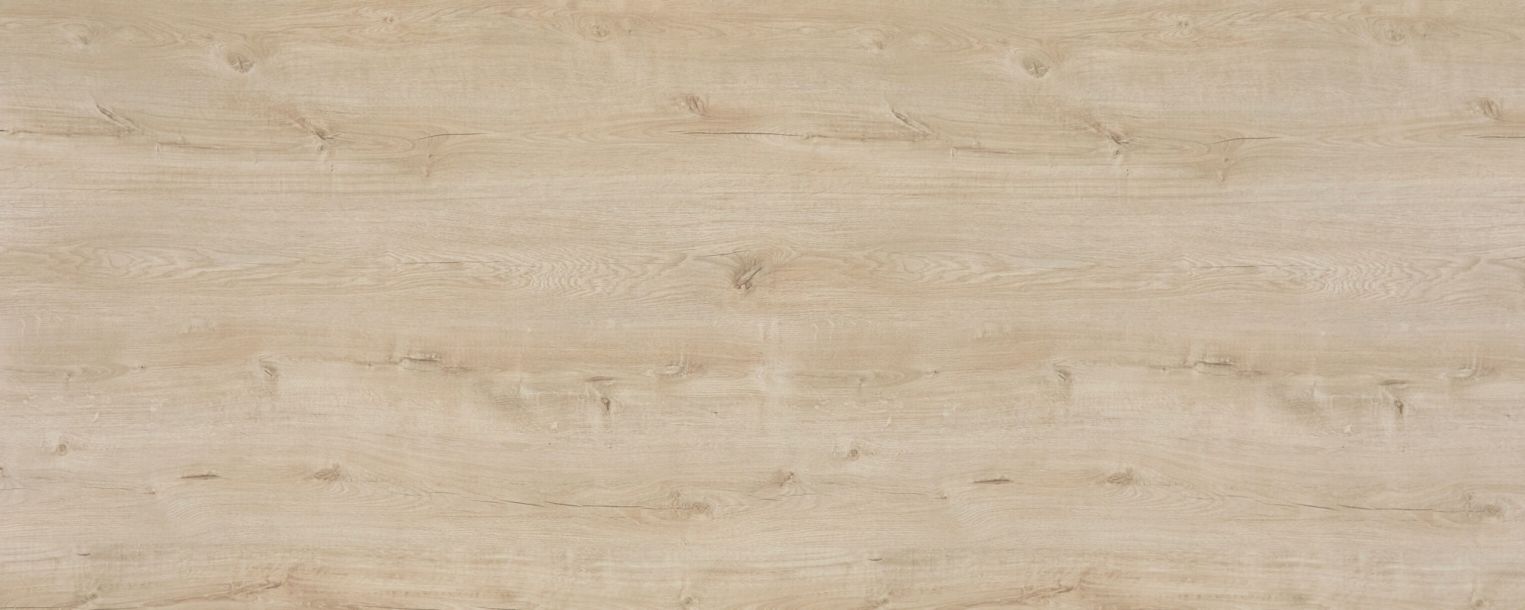

Oak 014
(Str 2)- 2440x1220mm
- 3050x1220mm

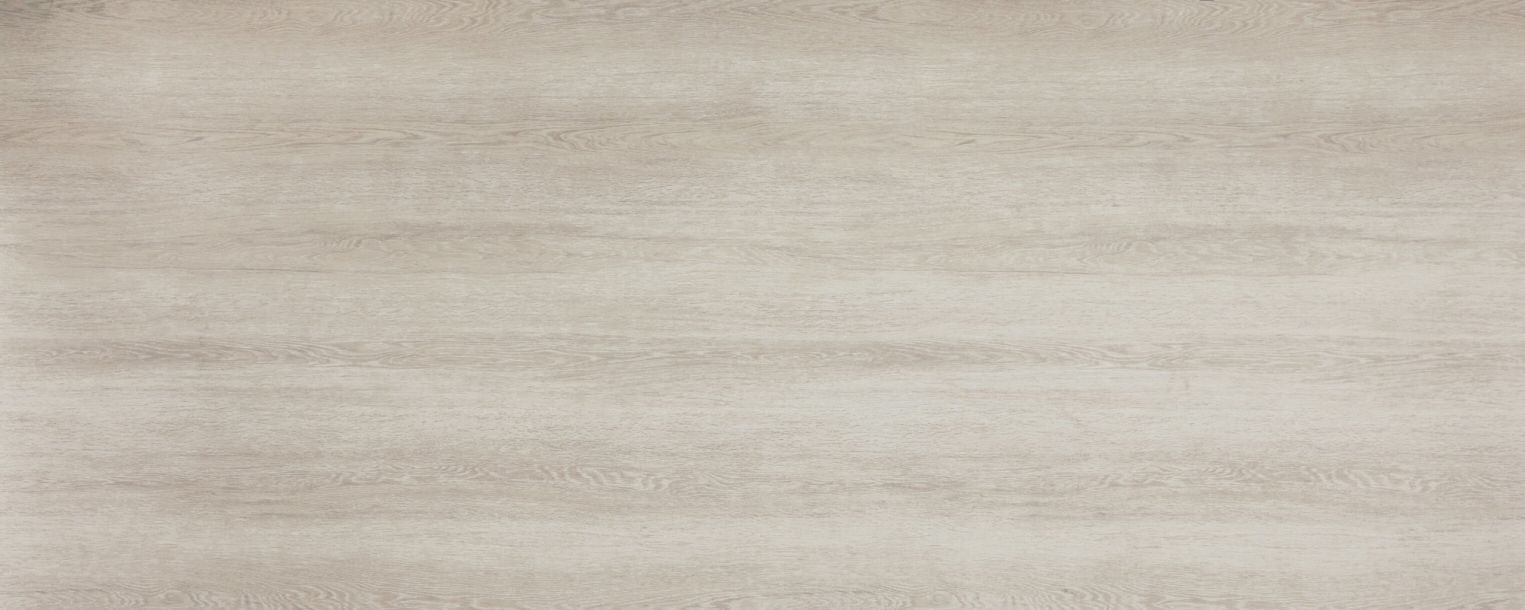

Oak 015
(Satin)- 2440x1220mm
- 3050x1220mm

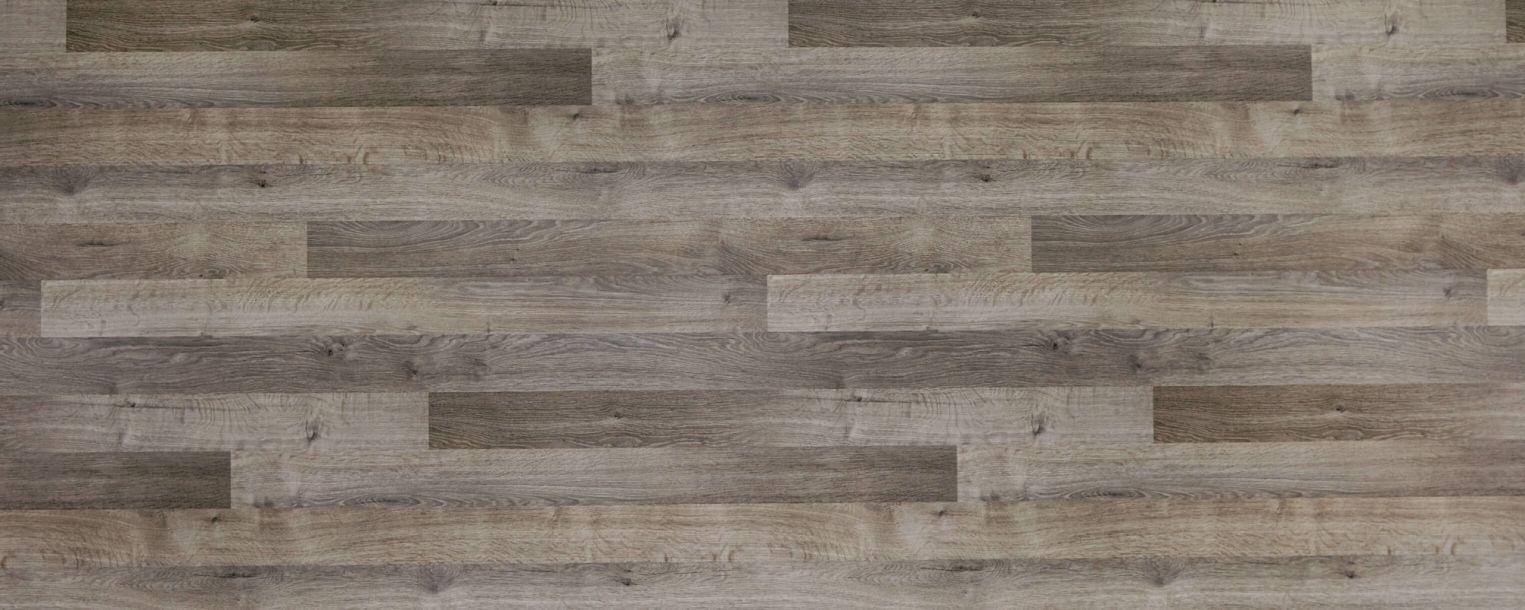

Oak 016
(Satin)- 2440x1220mm
- 3050x1220mm

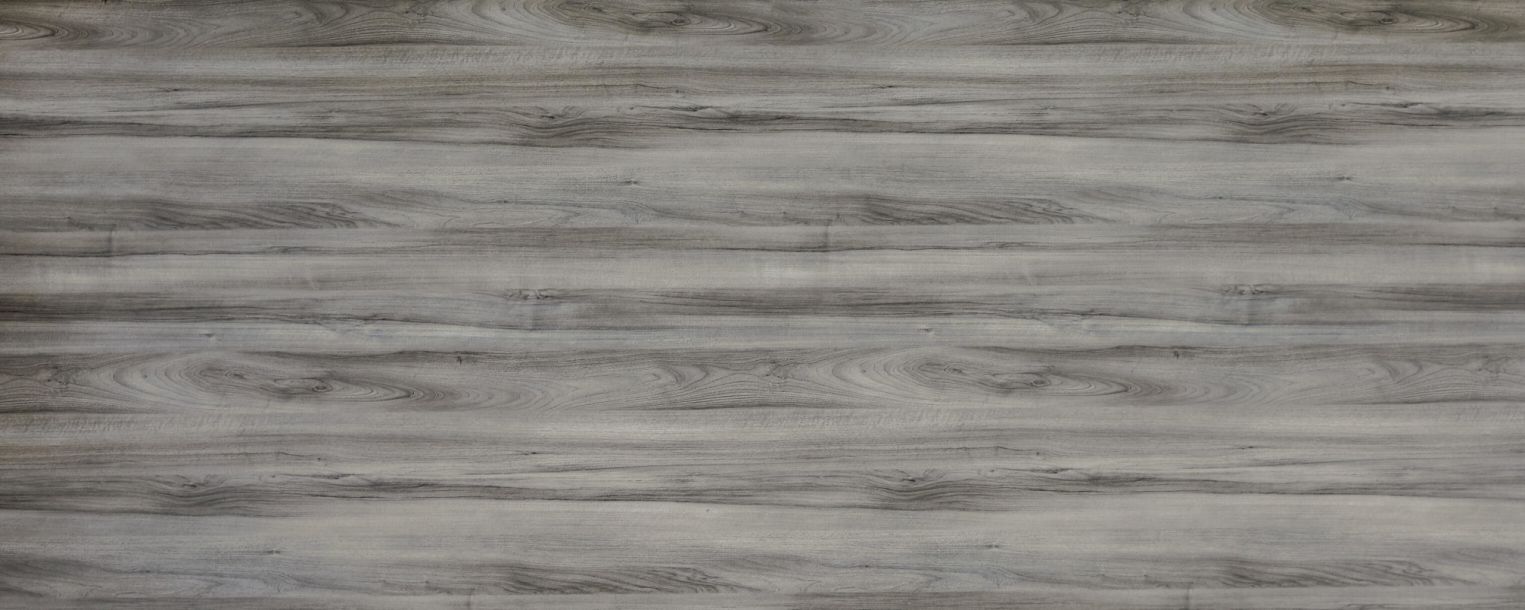

Oak 017
(Satin)- 2440x1220mm
- 3050x1220mm

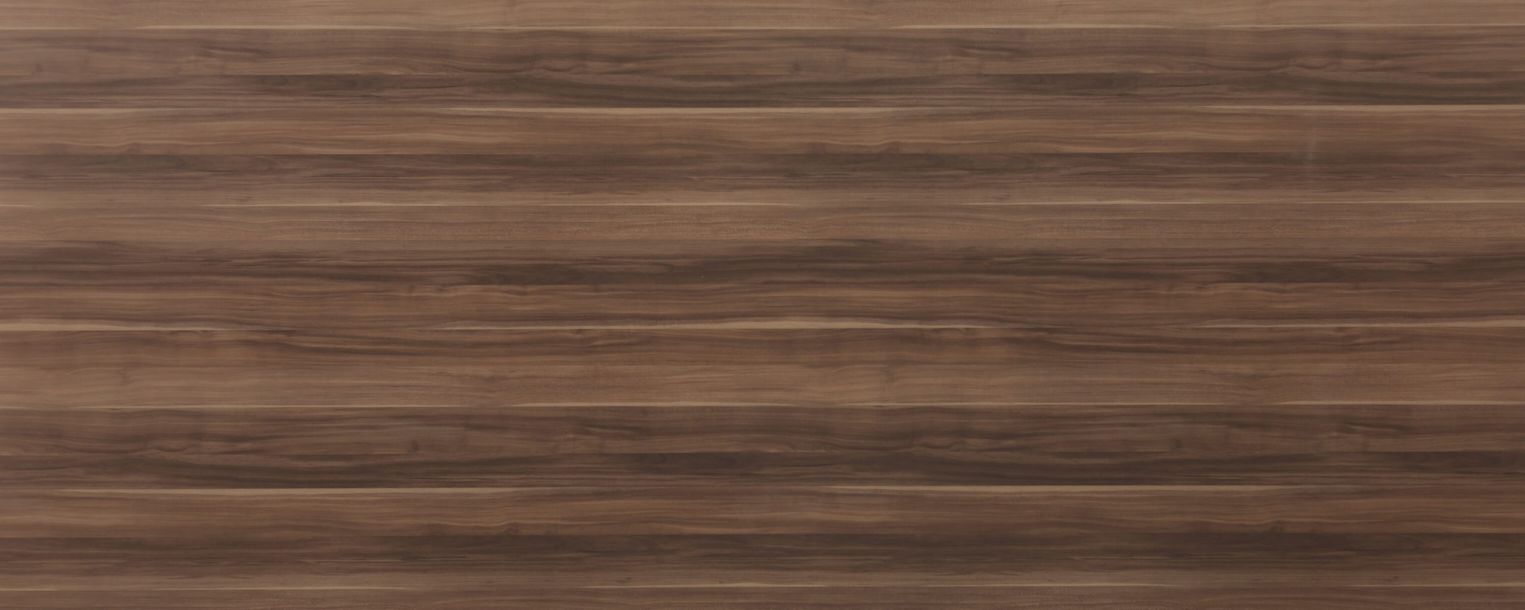

Plum 002
(Gloss)- 2440x1220mm
- 3050x1220mm

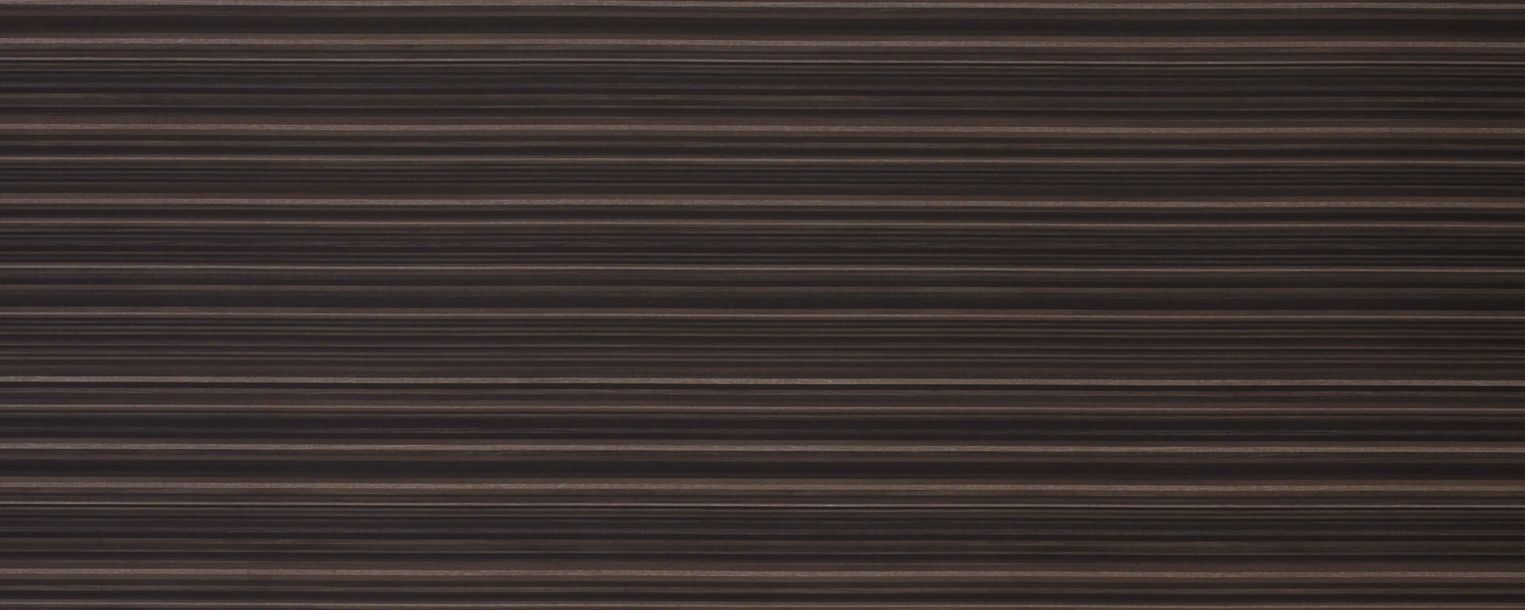

Striped Woodmix 001
(Satin)- 2440x1220mm
- 3050x1220mm
Walnut 011
(Satin)- 2440x1220mm
- 3050x1220mm

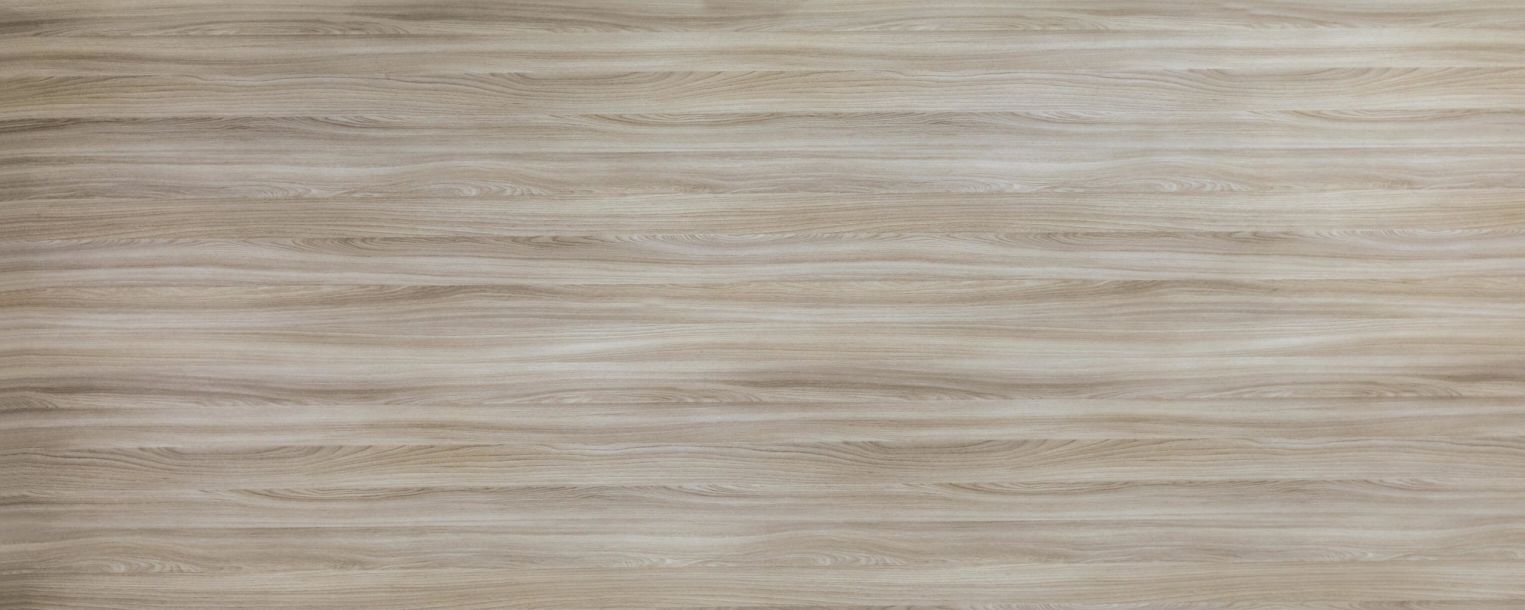

Walnut 013
(Satin)- 2440x1220mm
- 3050x1220mm

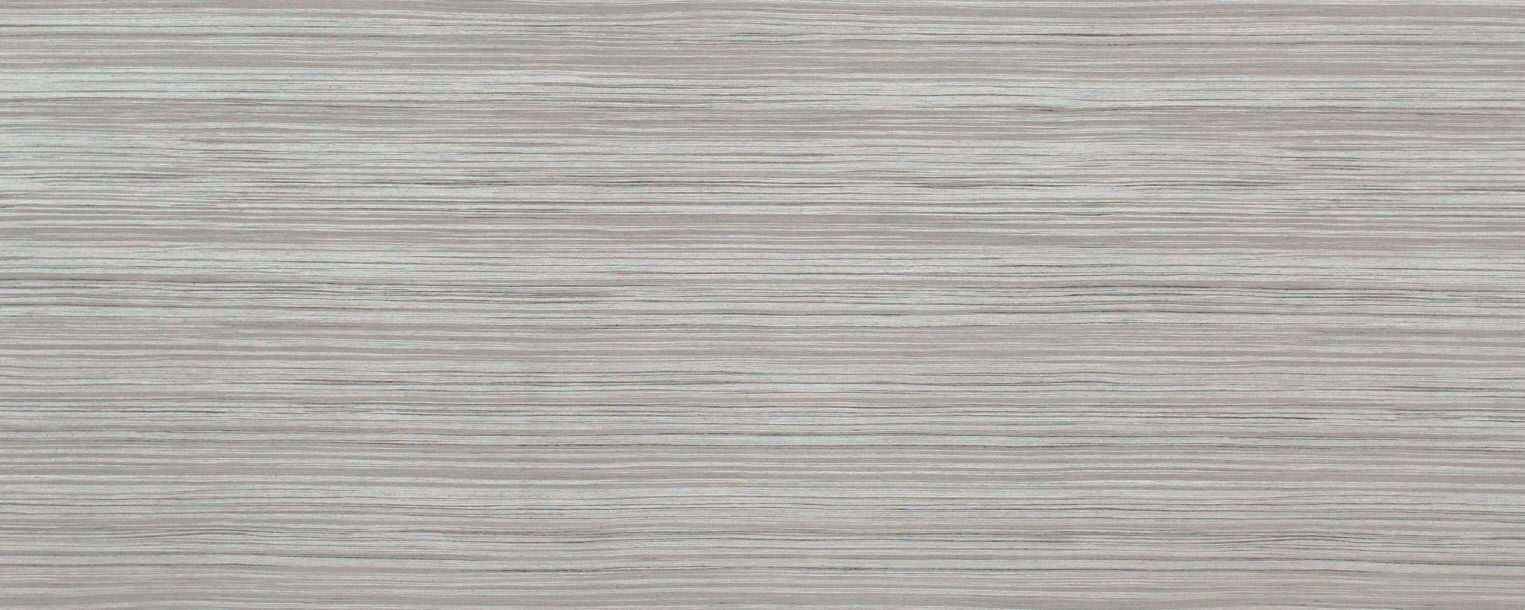

Zebrano 004
(Satin)- 2440x1220mm
- 3050x1220mm

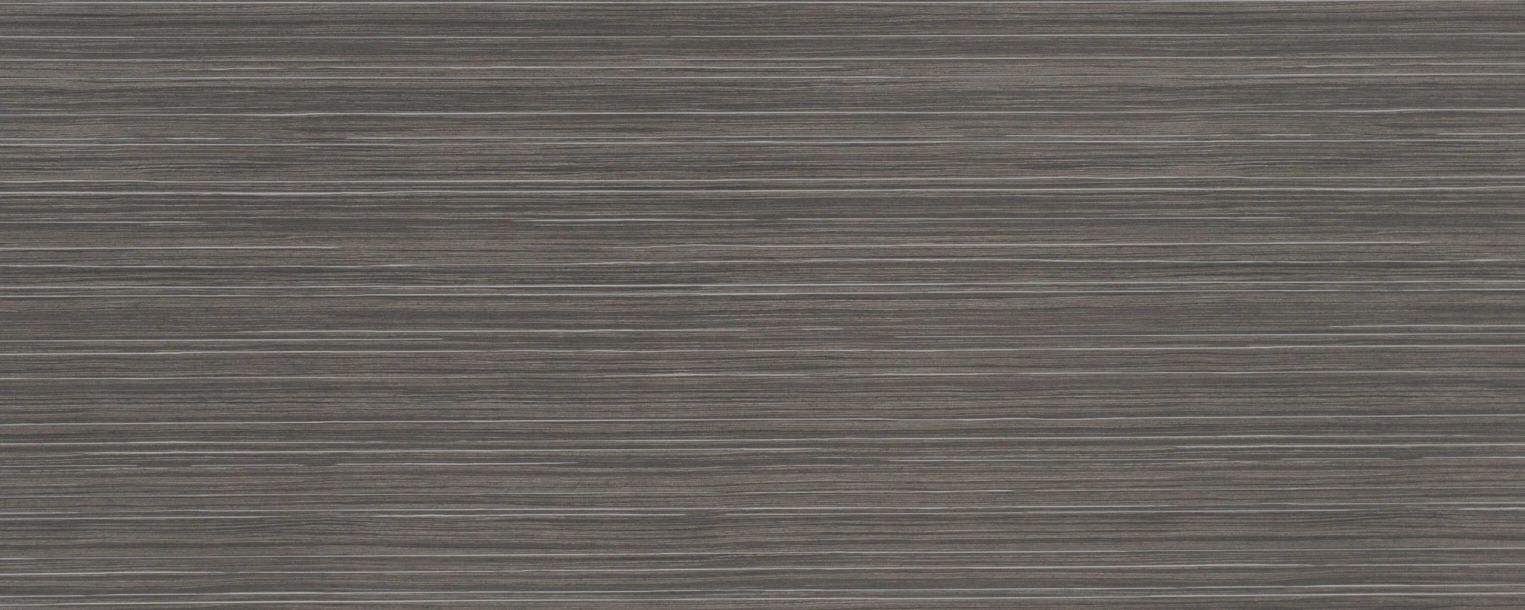

Zebrano 005
(Satin)- 2440x1220mm
- 3050x1220mm
Recommended Stones

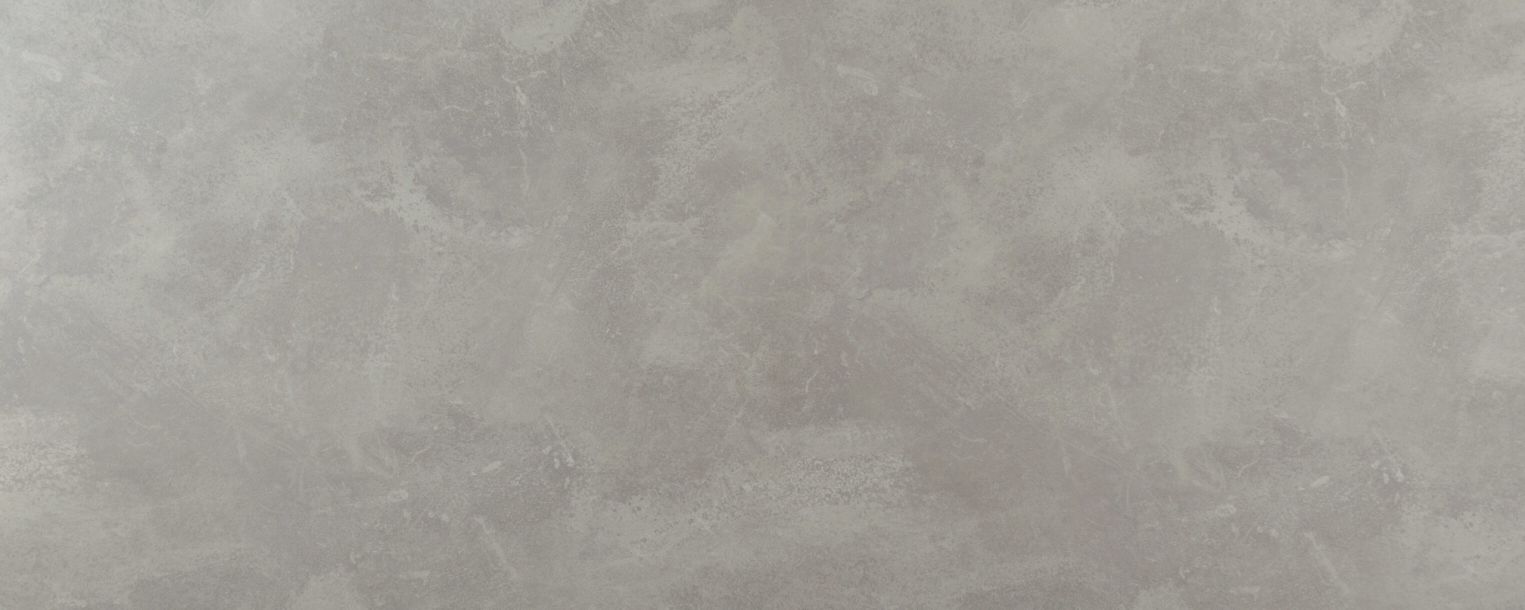

Concrete 002
(Stone)- 2440x1220mm
- 3050x1220mm

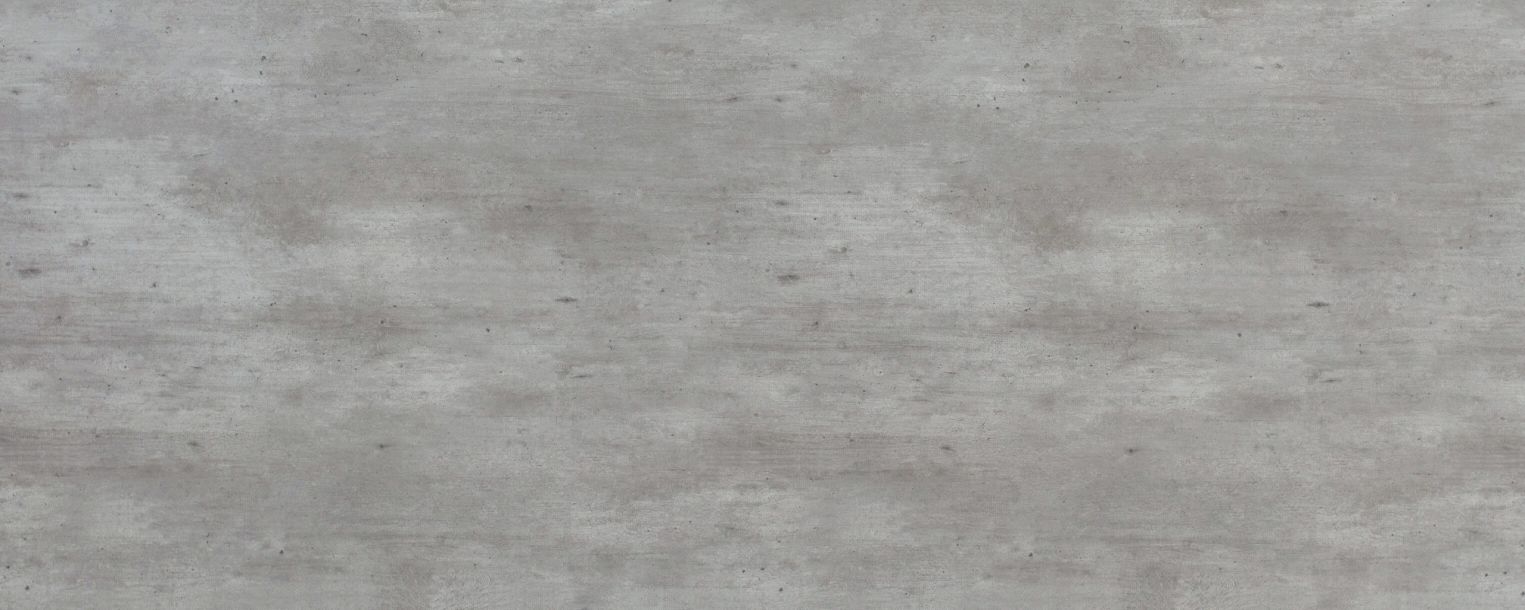

Concrete 003
(Str 2)- 2440x1220mm
- 3050x1220mm

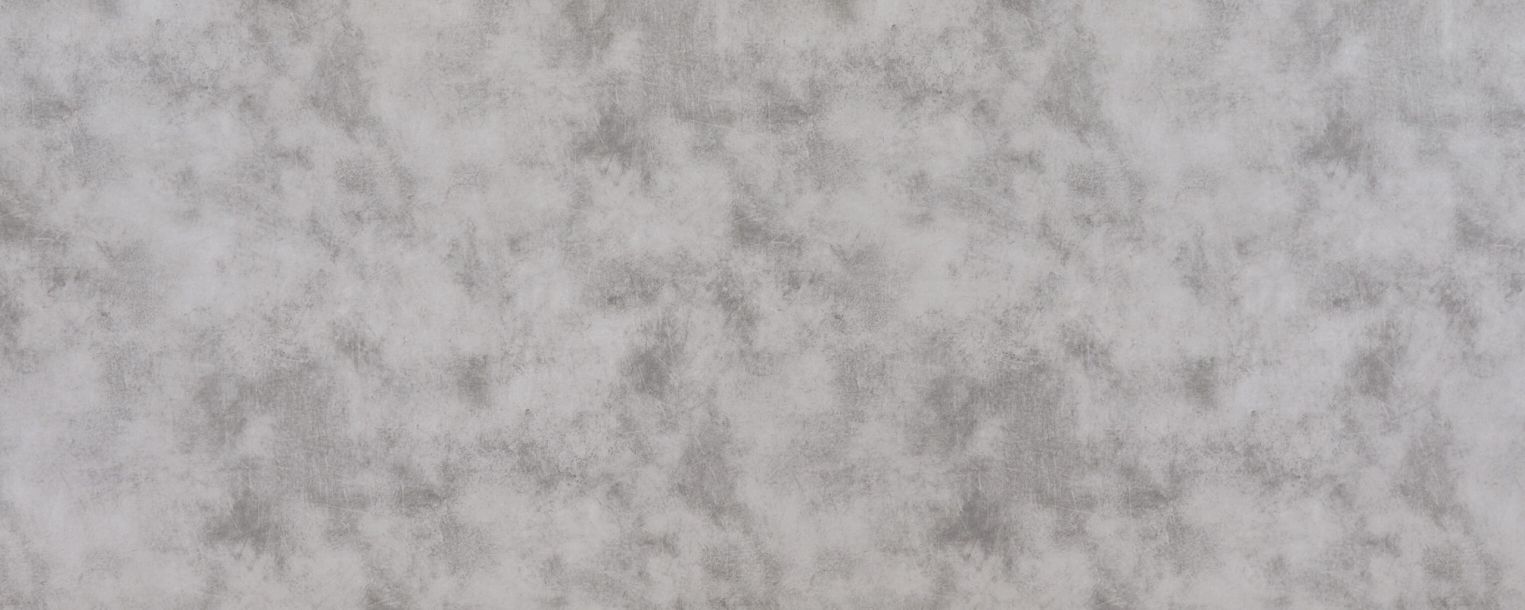

Concrete 006
(Satin)- 2440x1220mm
- 3050x1220mm

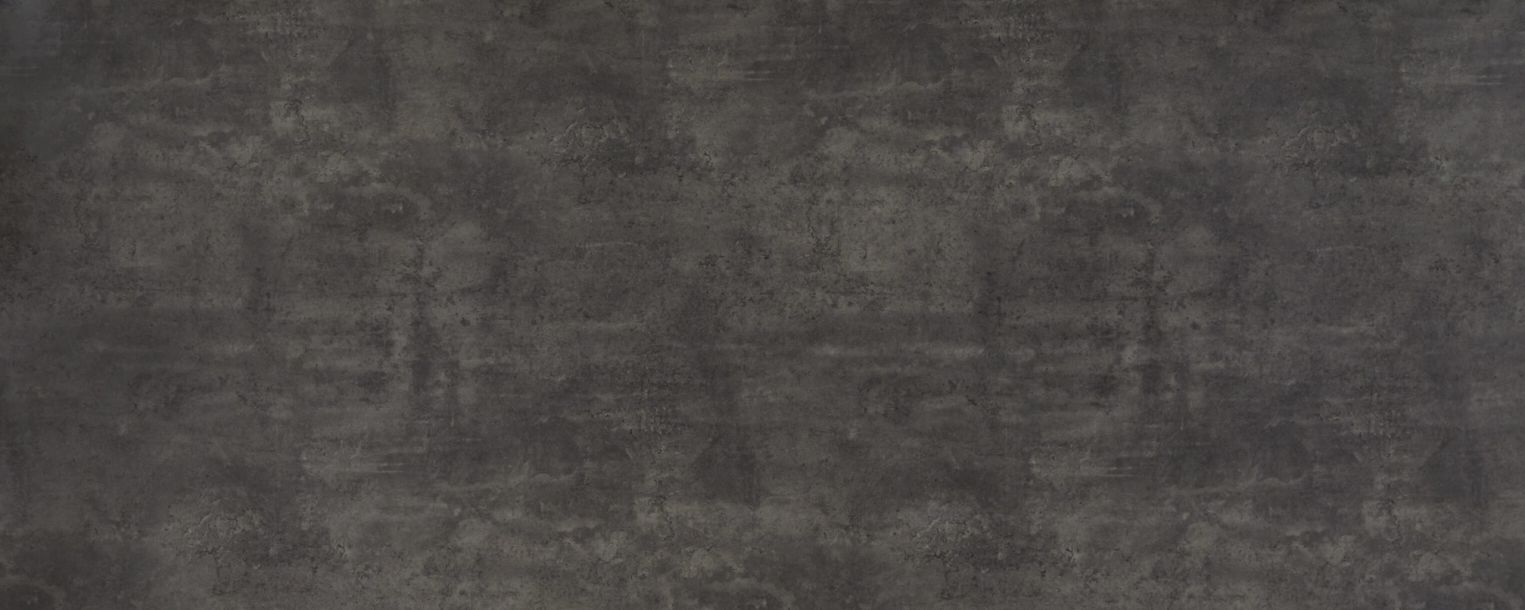

Concrete 007
(Satin)- 2440x1220mm
- 3050x1220mm

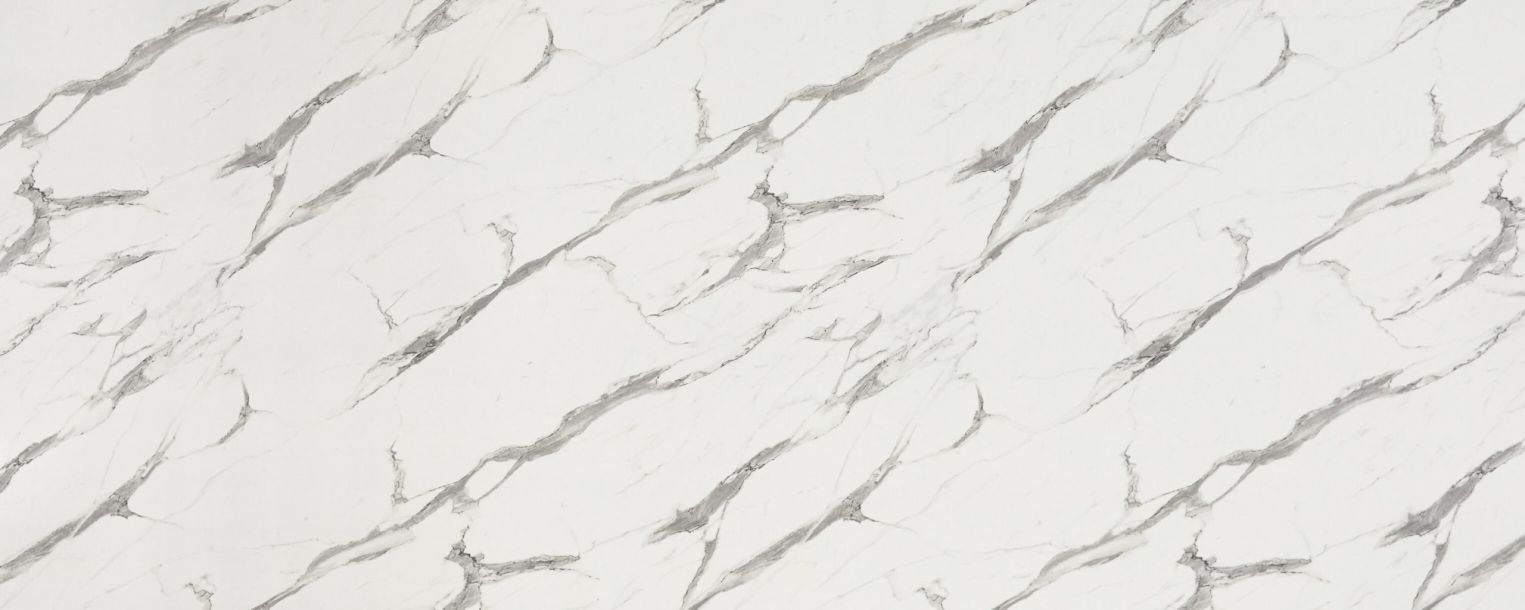

Marble 001
(Gloss)- 2440x1220mm
- 3050x1220mm
Marble 002
(Matt)- 2440x1220mm
- 3050x1220mm

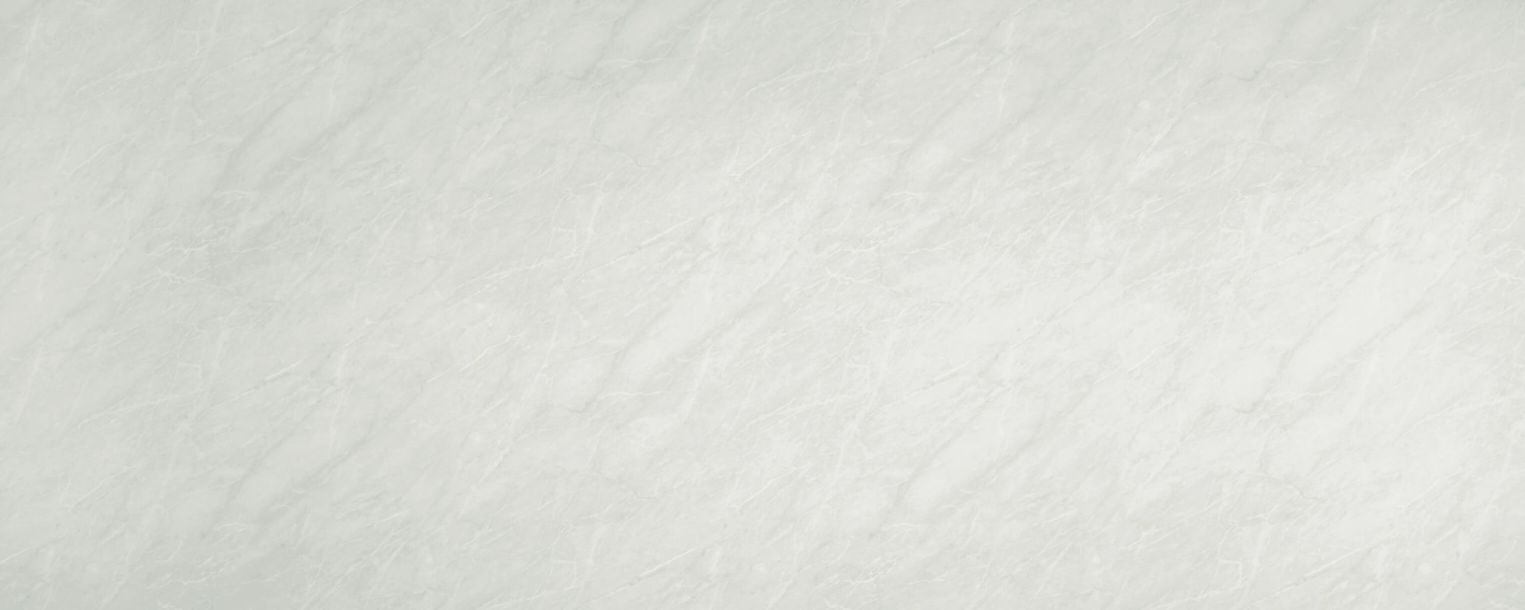

Marble 003
(Matt)- 2440x1220mm
- 3050x1220mm
Marble 004
(Satin)- 2440x1220mm
- 3050x1220mm

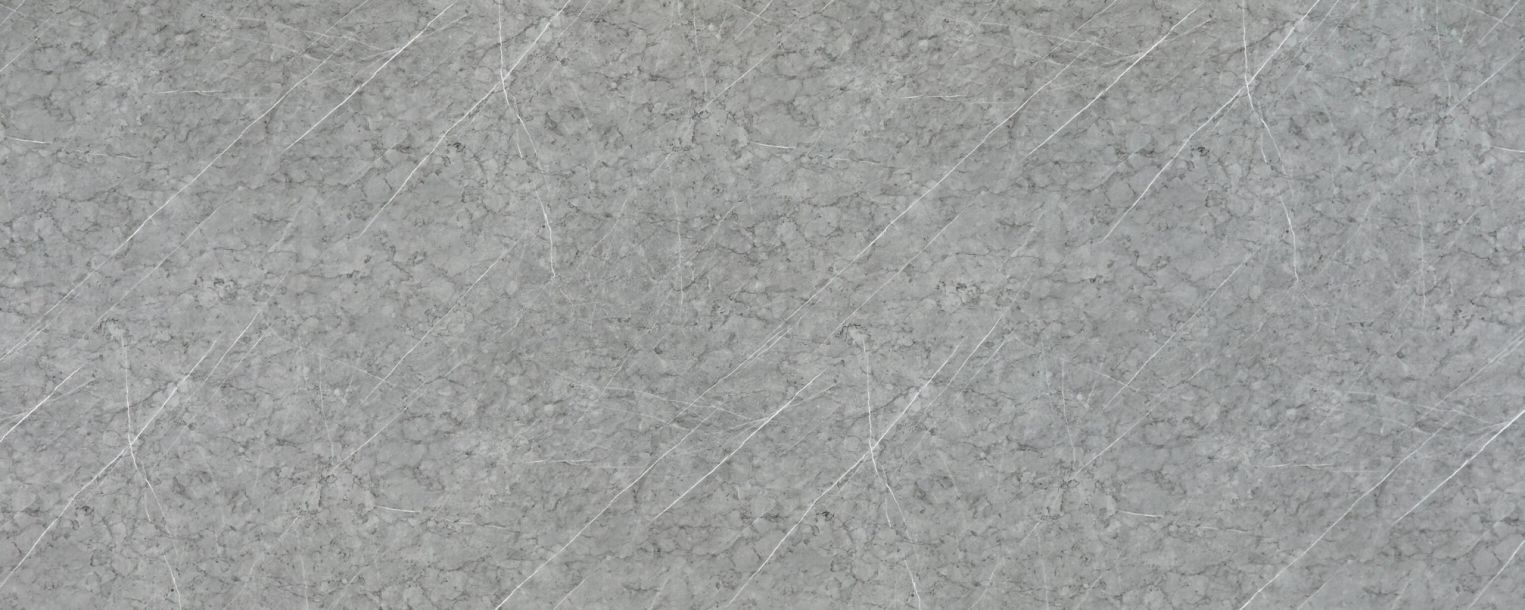

Marble 005
(Matt)- 2440x1220mm
- 3050x1220mm

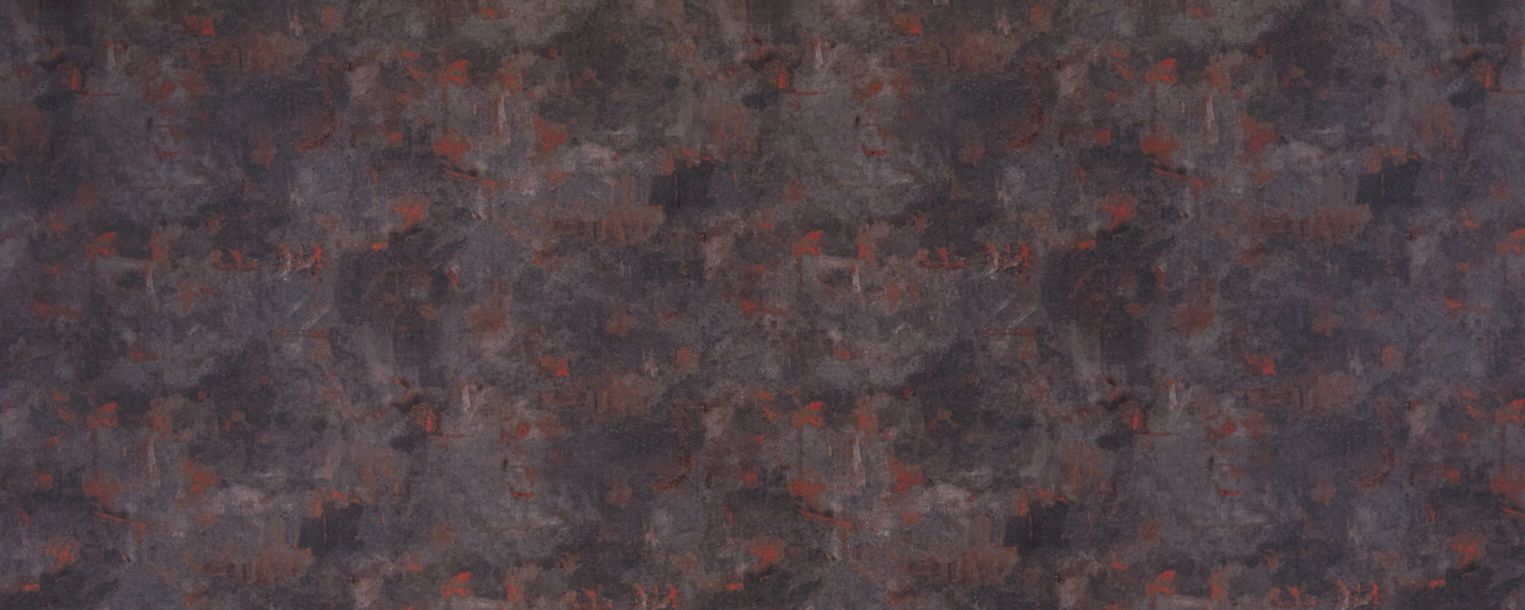

Stone 001
(Satin)- 2440x1220mm
- 3050x1220mm

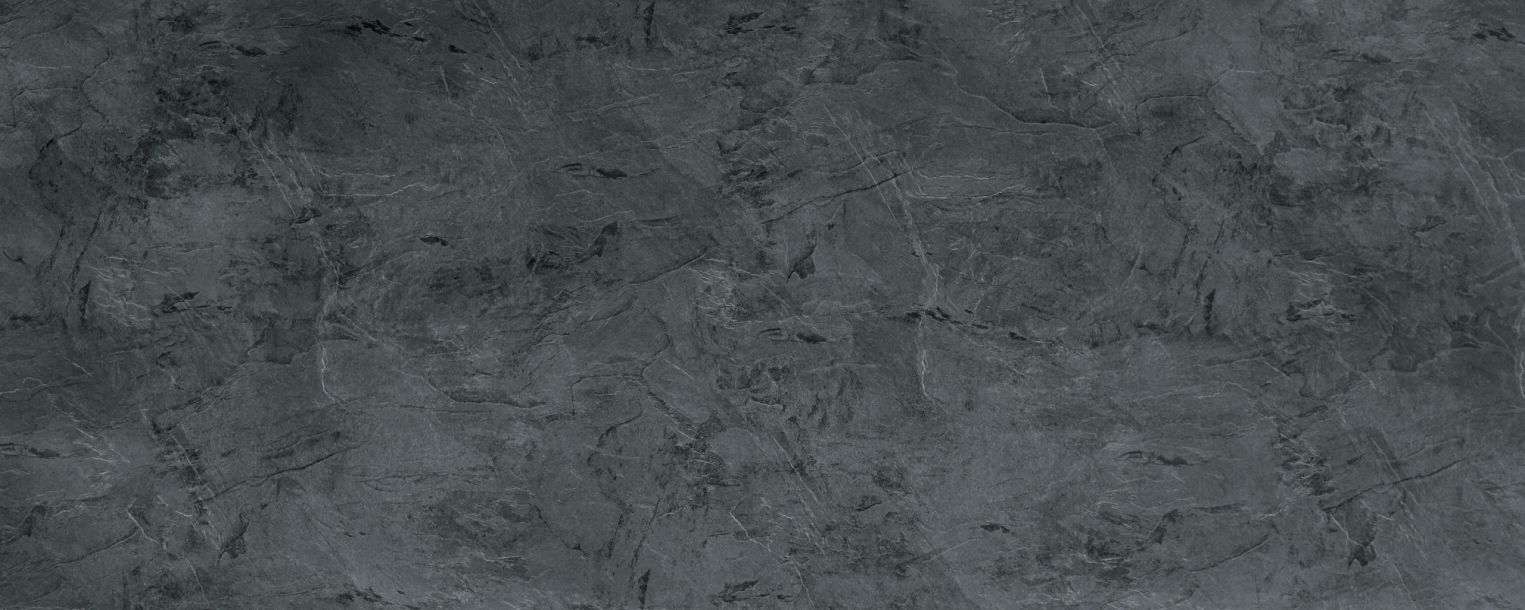

Stone 002
(Stone)- 2440x1220mm
- 3050x1220mm
Recommended Metallics
Aluminium 001
(Brushed)- 2440x1220mm
- 3050x1220mm
Aluminium 002
(Polished)- 2440x1220mm
- 3050x1220mm
Bronze 001
(Brushed)- 2440x1220mm
- 3050x1220mm
Brushed Metal 001
(Satin)- 2440x1220mm
- 3050x1220mm
Brushed Metal 002
(Satin)- 2440x1220mm
- 3050x1220mm
Brushed Metal 003
(Satin)- 2440x1220mm
- 3050x1220mm
Copper 001
(Brushed)- 2440x1220mm
- 3050x1220mm
Gold 001
(Brushed)- 2440x1220mm
- 3050x1220mm
Gold 002
(Polished)- 2440x1220mm
- 3050x1220mm
Pewter 001
(Polished)- 2440x1220mm
- 3050x1220mm
Steel 001
(Brushed)- 2440x1220mm
- 3050x1220mm
Technical Information
Winwood Products is a Laminated Plywood & MDF supplier offering the following range of options:
- Core options
- Laminated birch plywood
- Laminated lightweight poplar plywood
- Laminated okoume/gaboon marine plywood
- Laminated beech plywood
- Laminated through-coloured MDF
- FD30 & FD60 fire doors
- Tropical hardwood plywood
- Commercial MDF (standard, fire retardant, moisture resistant, exterior, etc)
- Chipboard (standard, fire retardant, moisture resistant, etc) - full pallets per item
- Laminate types
- Standard commercial laminates
- Fire retardant laminates
- Foodsafe laminates
- Plastic coated steel
