Solid timber panels

Steamed Beech - Full Length Stave Panels & Worktops

Steamed Beech panel (1-layer full length staves)
  • Special order item
  • 19mm-45mm (composites up to 100mm)
  • Maximum size 3000x1210mm or 3800x670mm
  • Supplied within 2 weeks in mini-bundles of 10 sheets / pallets of 20 sheets
  • Supplied unfinished or with various coatings such as clear lacquer, oils, etc.
  • D3 bonded for limited high moisture conditions

Construction

Winwood Products is a supplier of the following steamed beech full length stave panels & worktops:

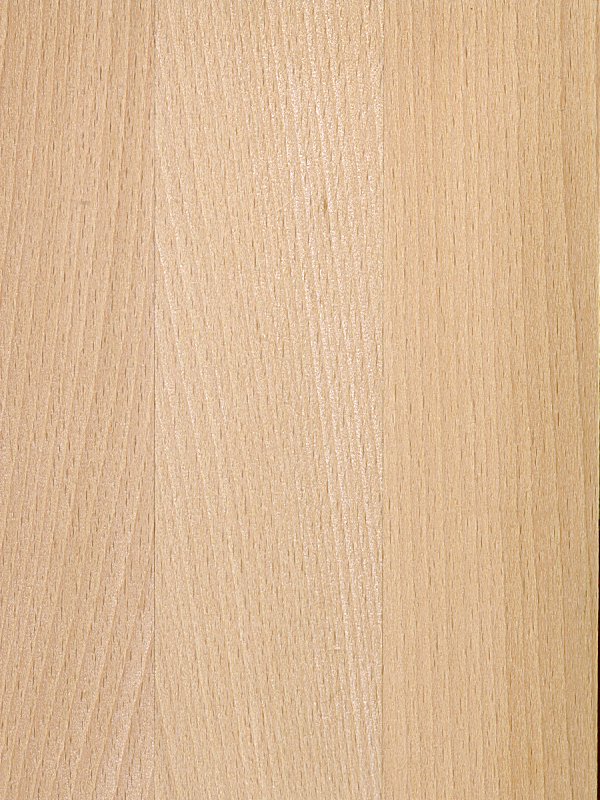

Specially ordered in pallets of 20 per item, these products are constructed from full thickness, full length strips of steamed beech. The strips are random width of 40-90mm wide, with each panel made from a single width of strip.

The staves making up the panel are bonded together with D3 water resistant glue, calibrated to 80 grit and the faces protected with shrinkwrapping before packaging on a pallet for shipping

The panel can be supplied as produced, or cut or machined to pattern. They can also be supplied prefinished with lacquer, oil, wax or special finishes as required.

Please click on the main Steamed Beech page for details of the wood

Information

Technical details (general)

  • Construction:
    • Full thickness, full length steamed beech staves of random width (40-90mm wide) - single width within each panel
  • Standard thickness:
    • 19mm, 25mm, 40mm, 43mm, 45mm
  • Standard sizes:
    • 19mm / 25mm / 40mm:
      800x / 1300x / 1500x / 1800x / 2000x / 2200x / 2500 / 2700x / 3000x1210mm
    • 40mm & 45mm also available in:
      900mm-2100mm x 650mm
    • 40mm, 43mm & 45mm also available in:
      2100mm-3800mm x 670mm
  • Special sizes:
    • In principle, any size can be produced up to the maximum stated above
  • Standard Finish:
    • Calibrated with 80 grit
  • Packaging:
    • Faces protected with shrinkwrapping
  • Tolerances:
    • Length/width: up to 1m @ ±1mm, up to 2m @ ±2mm , 2m & above @ ±3mm
    • Thickness: +0.2mm, -0.5mm
    • (Others by arrangement)
  • Face grades:
    • A face / B reverse
    • Other grading by arrangement
  • Bonding Quality:
    • D3 - High moisture applications
  • Other features:
    • Other woods can be incorporated into the construction of the panel to achieve a decorative or contrasting effect
