Softwood Three-Layer Panels

Solid timber panels
Softwood Triply Three-Layer Panel - Spruce
  • Special production items, often delivered within 2-3 weeks
  • Can be supplied in split pack quantity per item
  • Thickness = 12mm-42mm - others by arrangement
  • 2520x2050mm, 3000x2050mm, 5050x2050mm, cut to size
  • Available with T&G edge profile & prefinished - including FR EN 13501 Class B
  • Can be cut or CNC machined to design
  • Certification: EN 13353 / CE
  • Also available faced with reclaimed wood

Overview

Solid wood panels are gaining popularity in high-end interior design and furniture production due to their unique aesthetic appeal and eco-friendly attributes, offering a viable alternative to other wood materials.

Careful selection of lamellas ensures that panels exhibit minimal cracking and a visually appealing, balanced aesthetic to give high-quality surfaces, while eco-friendly bonding techniques not only preserve the wood's natural characteristics but also enhance its stability and longevity.

  • Minimum Order
    • Less than pack quantity possible
  • Full Pack Quantity
    • 12mm = 30
    • 16mm = 30
    • 19mm = 25
    • 22mm = 20
    • 24mm = 20
    • 27mm = 20
    • 32mm = 15
    • 42mm = 10
  • Additional options:
    • Cut to size, CNC machined, T&G profiled
    • Prefinished cladding panels @ 2505x665mm laid measure - other dimensions by agreement
    • Can be supplied as doors and matching door frame material
    • Available with reclaimed wood surfaces
    • Textured surfaces (sawn, brushed, chopped, crossgrain brushed)
    • MUF / AW100 bonded (EN 13353: SWP 2)

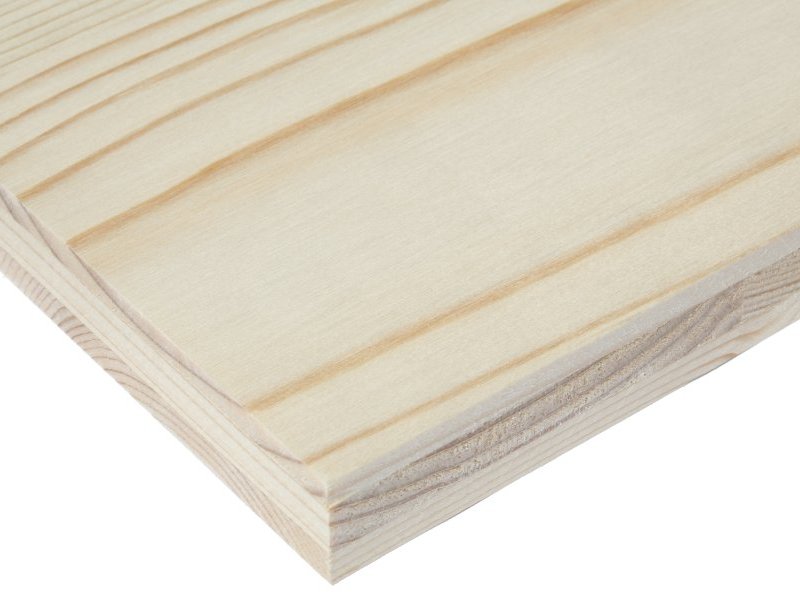

Spruce Triply Three-Layer Panels

  • Construction
    • Spruce faces 140mm wide (also 191mm wide @ 12mm & 19mm) on spruce core
  • Standard sizes
    • 5050x2050mm = full sheet size
    • 2520x2050mm (supplied in pairs)
    • 3000x2050mm with 2040x2050mm offcut
    • Can be cut to any other length plus offcut from full sheet size 5050x2050mm
    • TG4 cladding panels (laid measure = 2505x665mm)
    • Standard doorblank size = 42mm 2080x605-1055mm (avaialble long-grain and crossgrain faces)
    • Standard Door lining size = 42mm 2150x145/160mm
    • Other dimensions by agreement
  • Surface options
    • Standard smooth finish
    • Textured (brushed, crossgrain brushed, fine sawn or hacked surface)
    • TG4 panels coated as standard with clear, or translucent white or black lacquer
    • FR lacquer option to achieve EN 13501 Class B on one or both sides of the panels

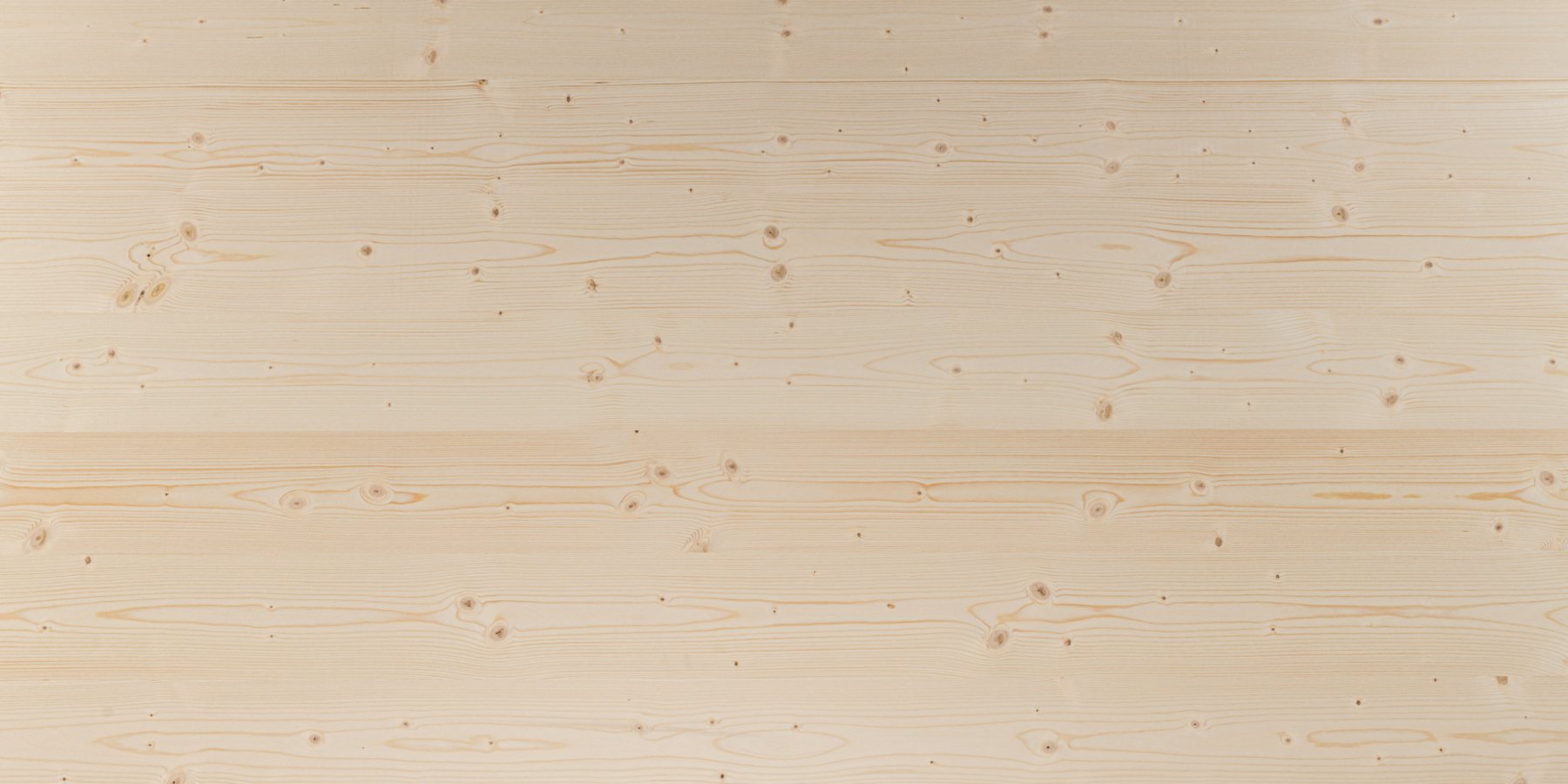

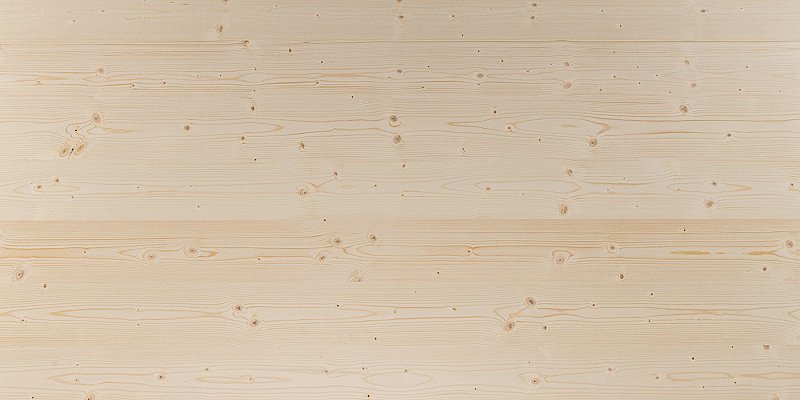

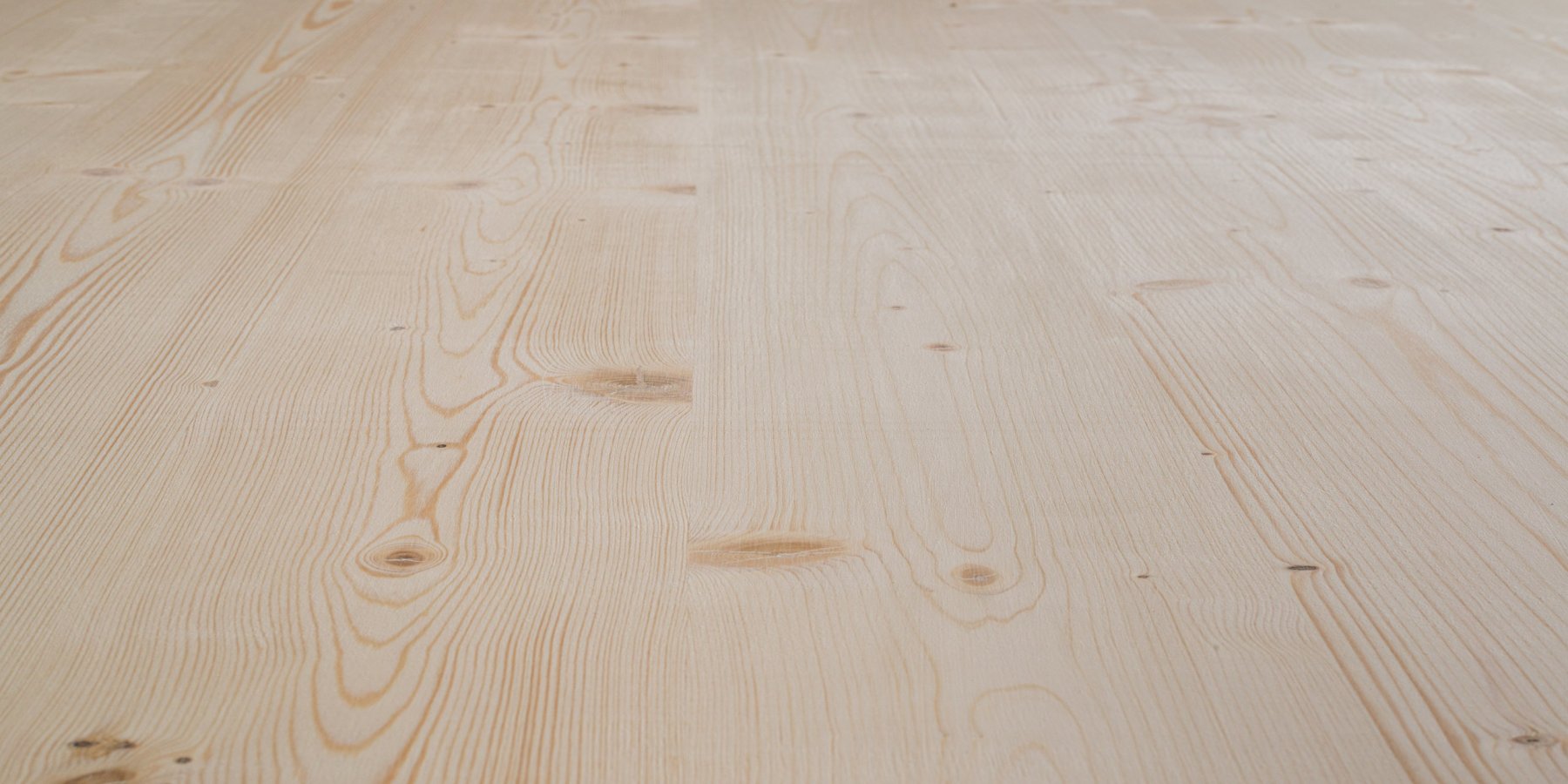

Spruce Triply (140mm wide)

Wide Spruce Triply (191mm wide)

Technical Details - Spruce Triply

12mm 16mm 19mm 22mm 24mm 27mm 32mm 42mm
Top layer (mm) 3.7 5.0 5.3 5.3 5.3 5.3 5.3 5.3
Core layer (mm) 4.6 6.0 8.4 11.4 13.4 16.4 21.4 31.4
Typical kg/m2 5.52 7.36 8.74 10.12 11.04 12.42 14.72 19.32

Douglas Fir Triply Three-Layer Panels

  • Construction
    • Douglas fir faces (normally 140mm wide) on spruce or pine core
  • Standard sizes
    • 5050x2050mm = full sheet size
    • 2520x2050mm (supplied in pairs)
    • 3000x2050mm with 2040x2050mm offcut
    • Can be cut to any other length plus offcut from full sheet size 5050x2050mm

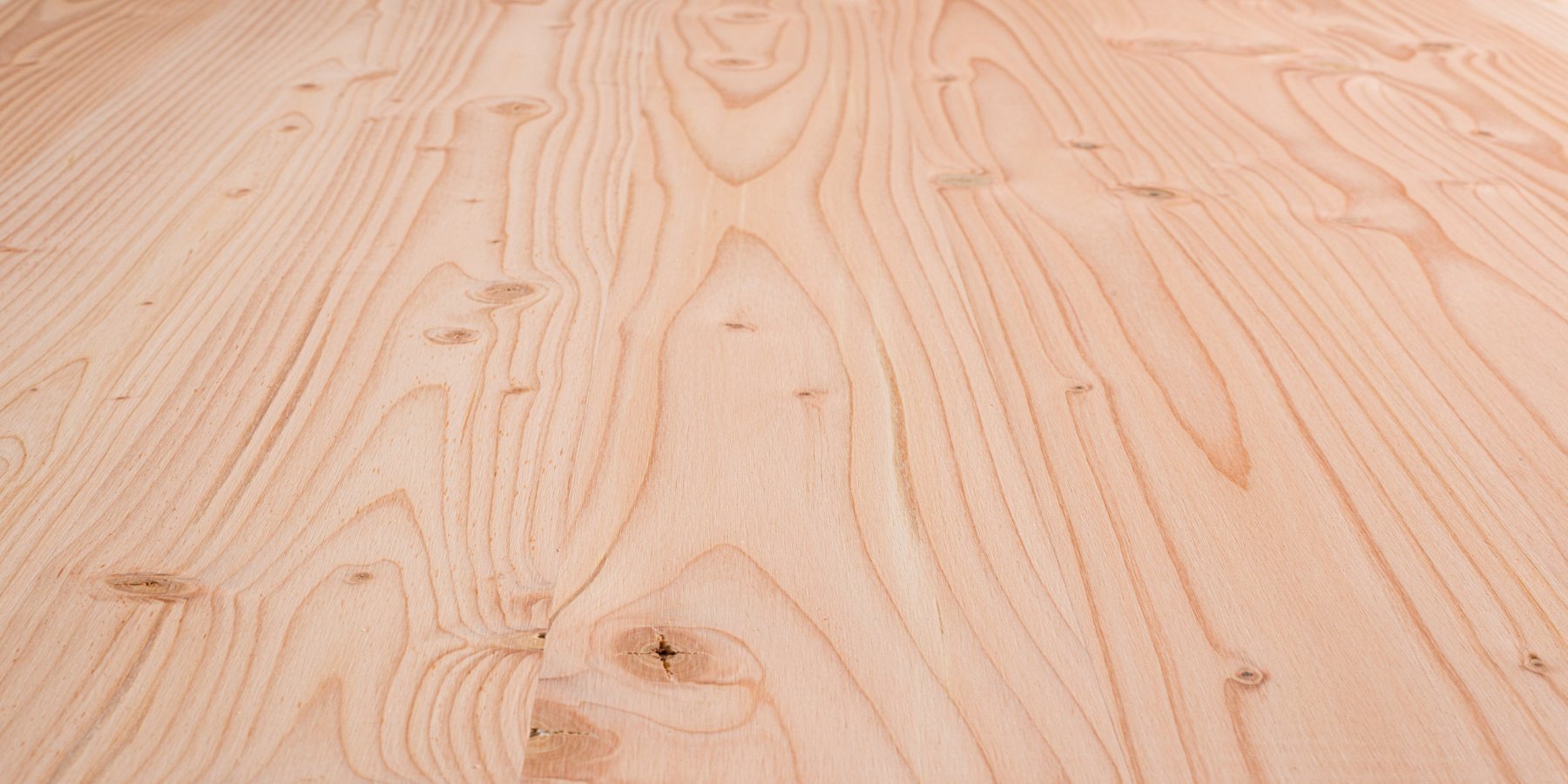

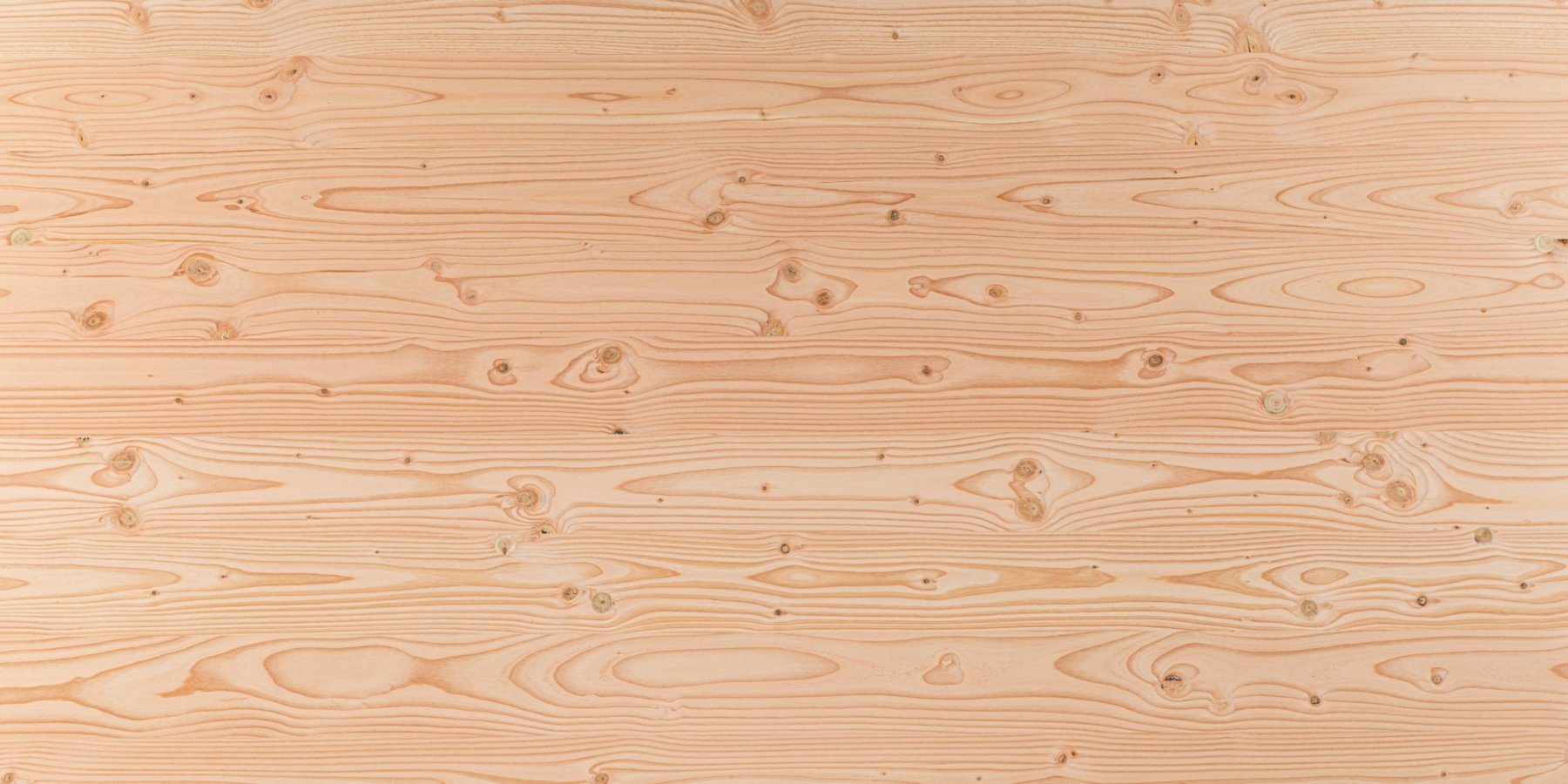

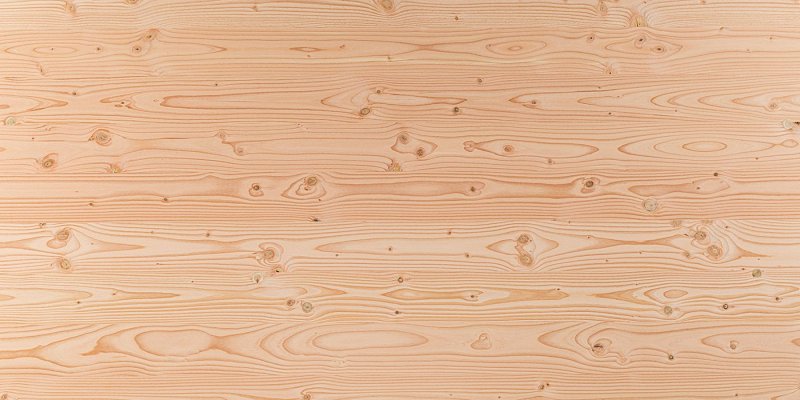

Douglas Fir Triply

Technical Details - Douglas Fir Triply

19mm 27mm
Top layer (mm) 5.3 5.3
Core layer (mm) 8.4 16.4
Typical kg/m2 9.50 13.90

European Larch Triply Three-Layer Panels

  • Construction
    • European Larch faces (normally 116mm wide) on spruce core
  • Standard sizes
    • 4950x2050mm = full sheet size
    • 2470x2050mm (supplied in pairs)
    • 3000x2050mm with 1940x2050mm offcut
    • Can be cut to any other length plus offcut from full sheet size 5050x2050mm

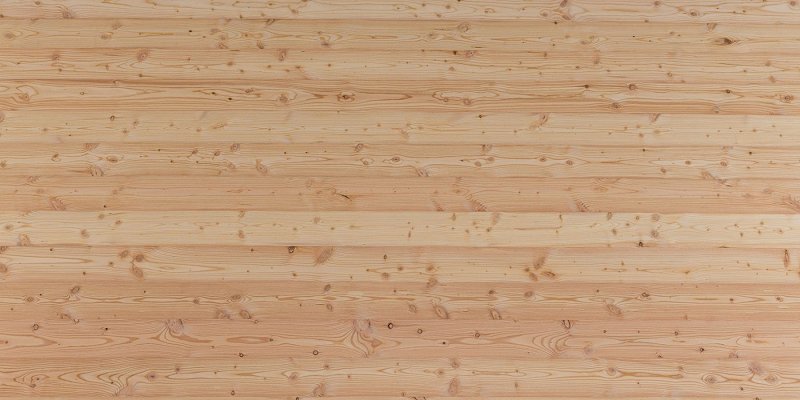

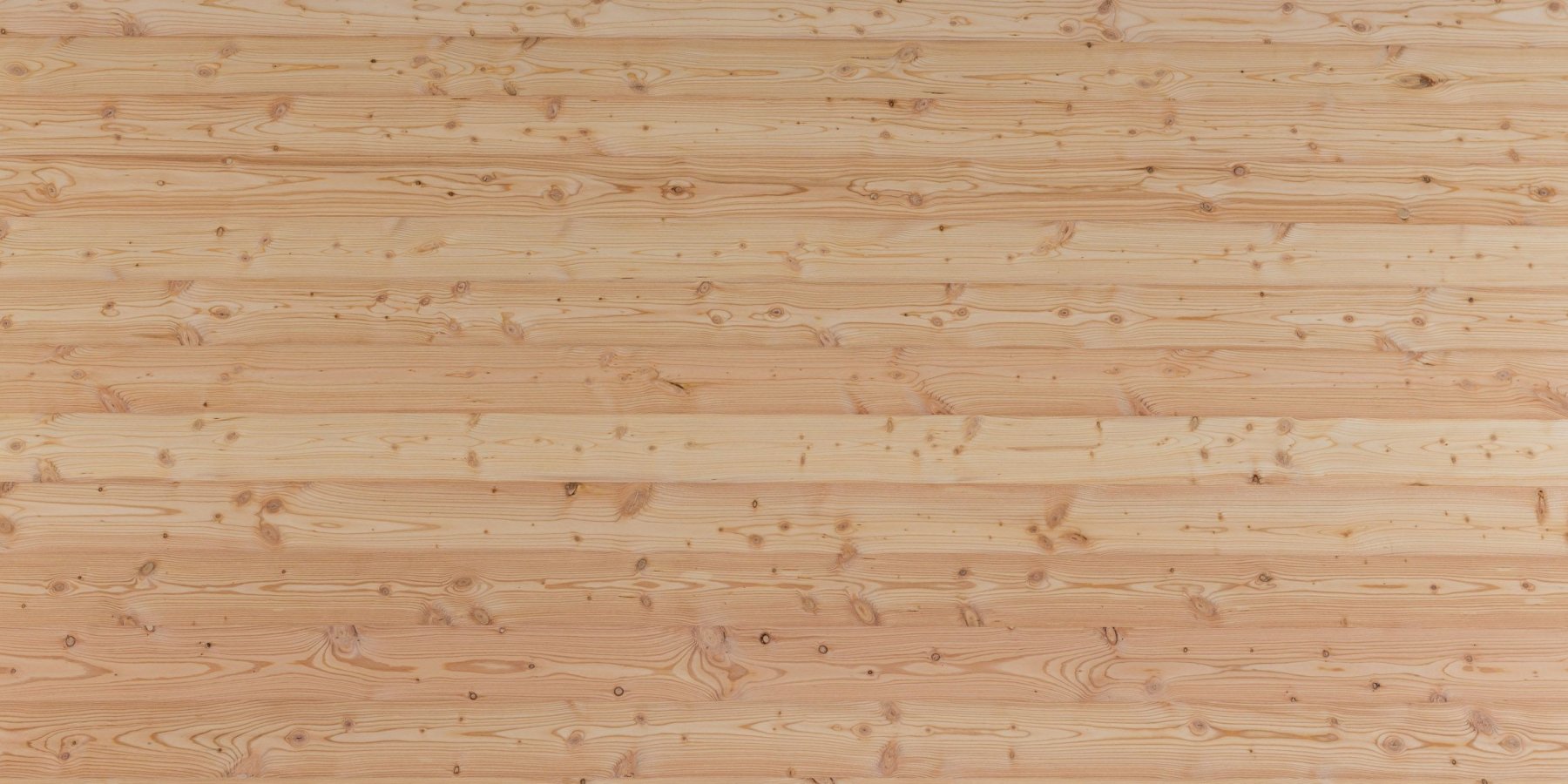

European Larch Triply

Technical Details - European Larch Triply

16mm 19mm 24mm 27mm 42mm
Top layer (mm) 5.0 5.3 5.3 5.3 5.3
Core layer (mm) 6.0 8.4 13.4 16.4 31.4
Typical kg/m2 8.50 10.34 13.59 15.54 25.29

Antique Larch Triply Three-Layer Panels

  • Construction
    • Antique Larch faces (normally 116mm wide) on spruce core
  • Standard sizes
    • 4950x2050mm = full sheet size
    • 2470x2050mm (supplied in pairs)
    • 3000x2050mm with 1940x2050mm offcut
    • Can be cut to any other length plus offcut from full sheet size 5050x2050mm

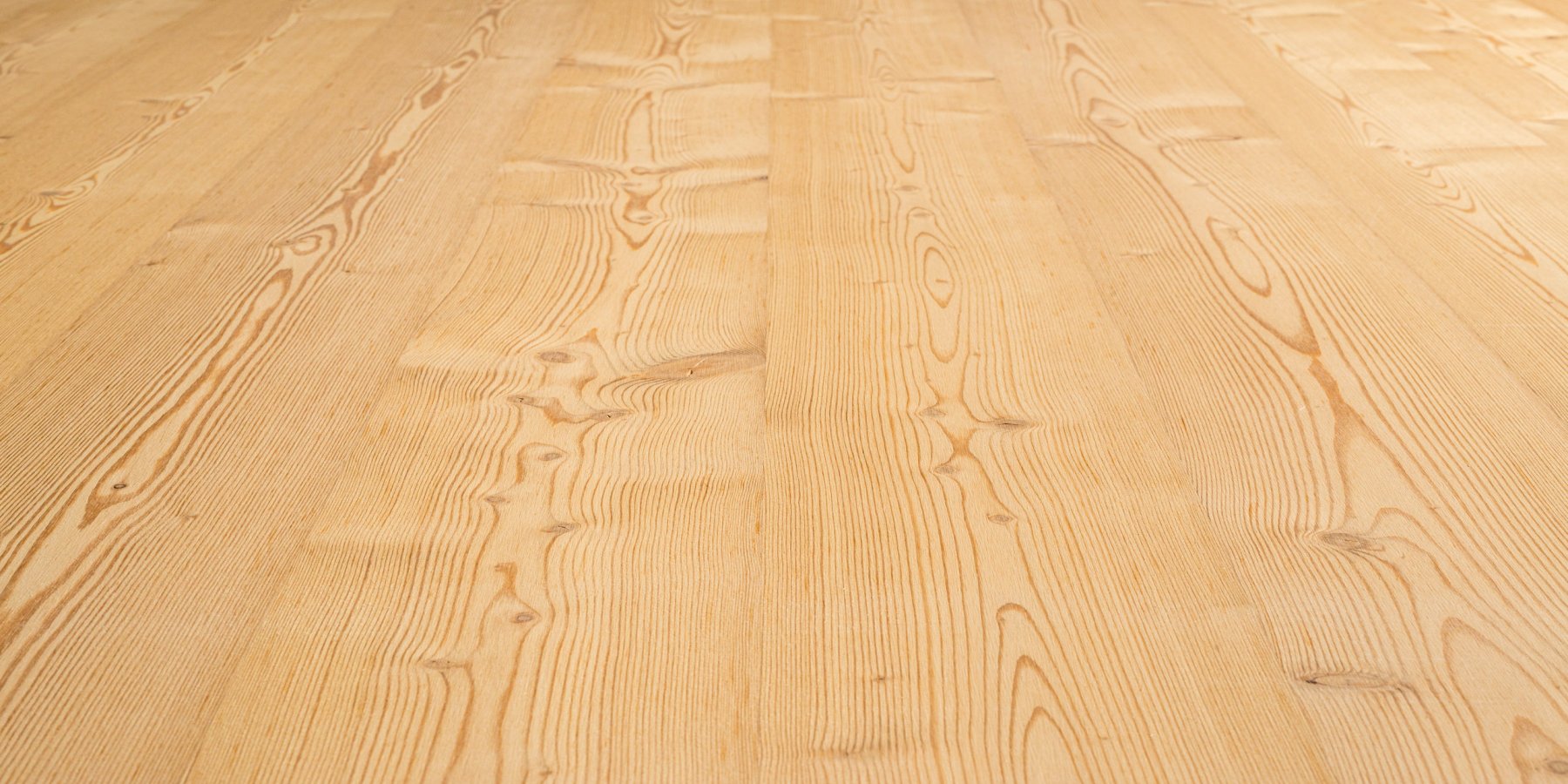

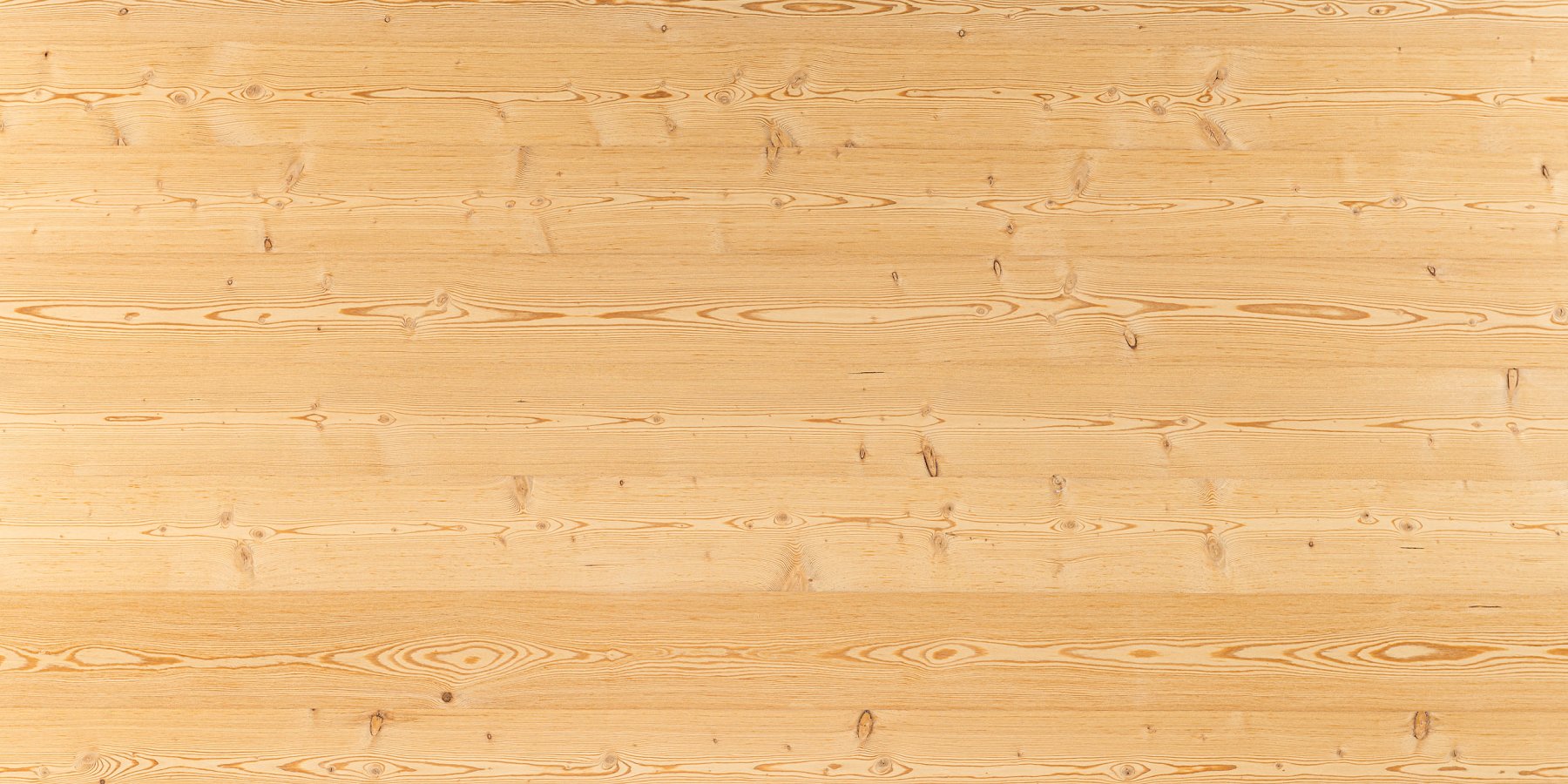

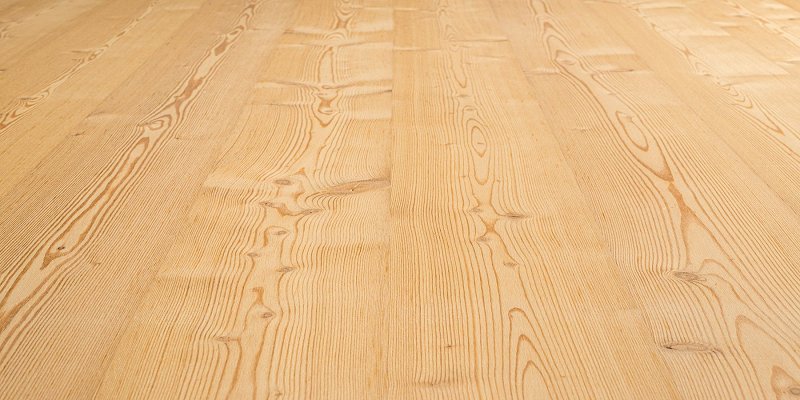

Antique Larch Triply (131mm wide)

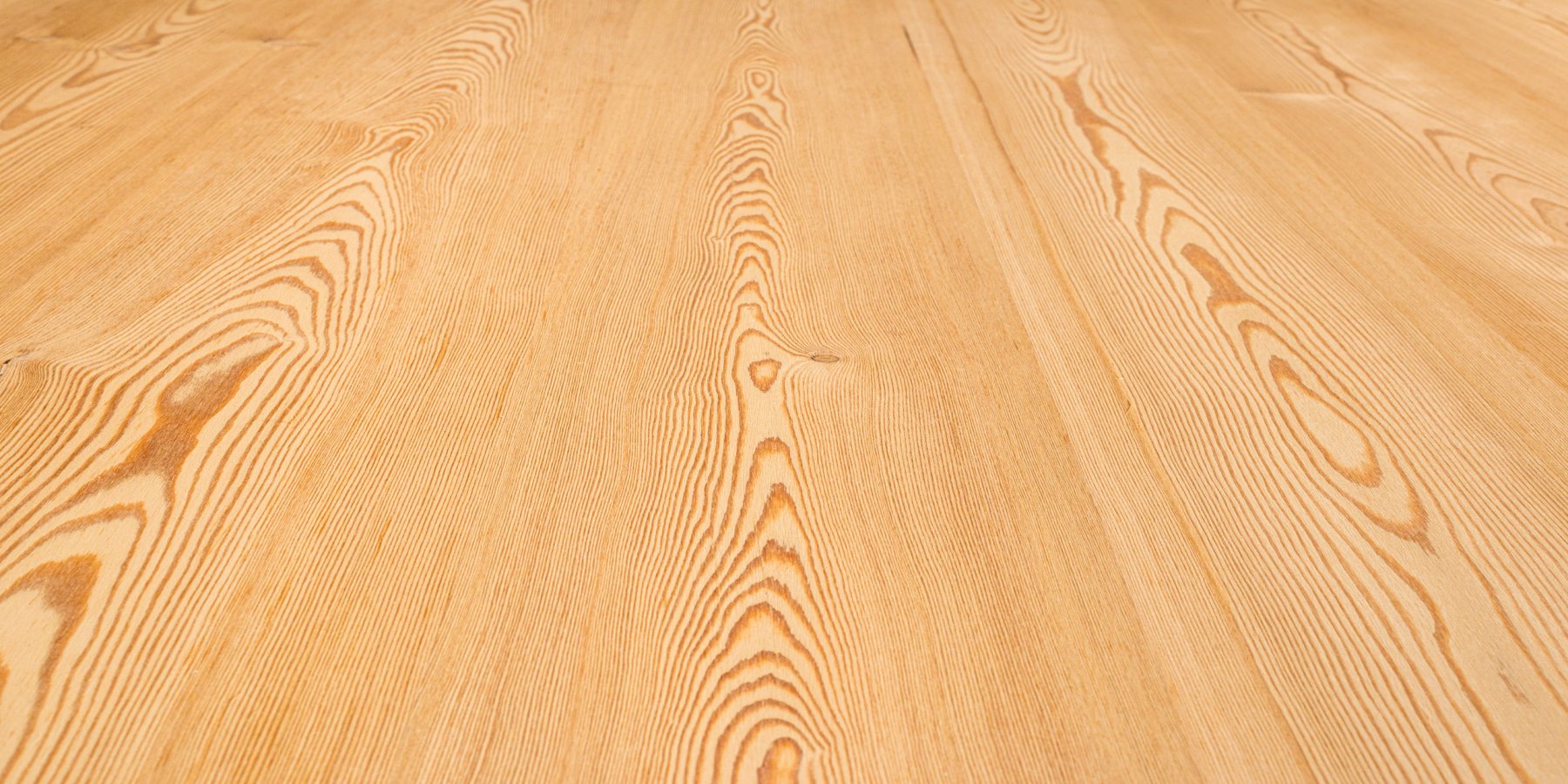

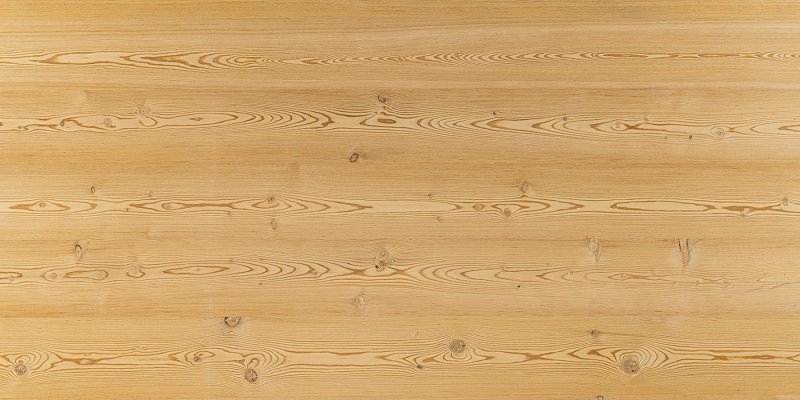

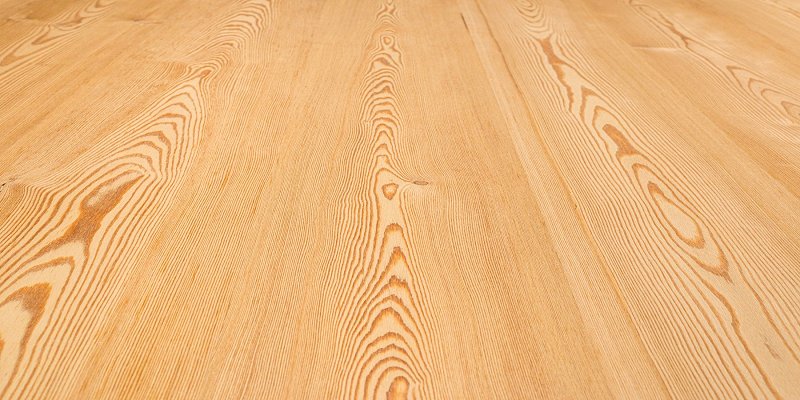

Wide Antique Larch Triply (140mm wide)

Technical Details - Antique Larch Triply

19mm 27mm
Top layer (mm) 5.3 5.3
Core layer (mm) 8.4 16.4
Typical kg/m2 10.34 15.54
