Solid timber panels

Fumed / Smoked Oak - 'Triply' Three-Layer Panels

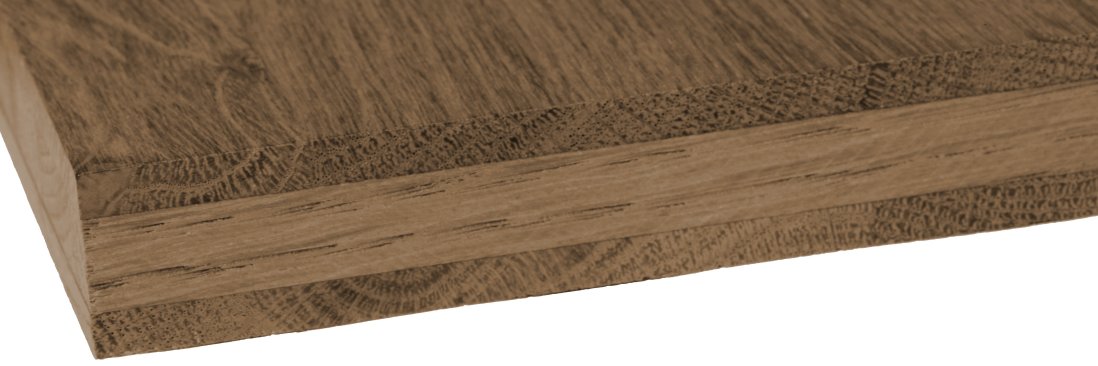

Fumed / Smoked Oak 'Triply' three-layer panel
  • Special manufacture item
  • 20mm, 26mm (others by agreement)
  • Maximum size 3000x1250mm
  • Typically available within 2-3 weeks in minimum 5 sheets per item
  • Bulk packages of mini-bundles (10) and pallets (20)
  • Supplied unfinished or with various coatings such as clear lacquer, oils, etc.
  • D4 bonded for high moisture conditions such as exterior cladding

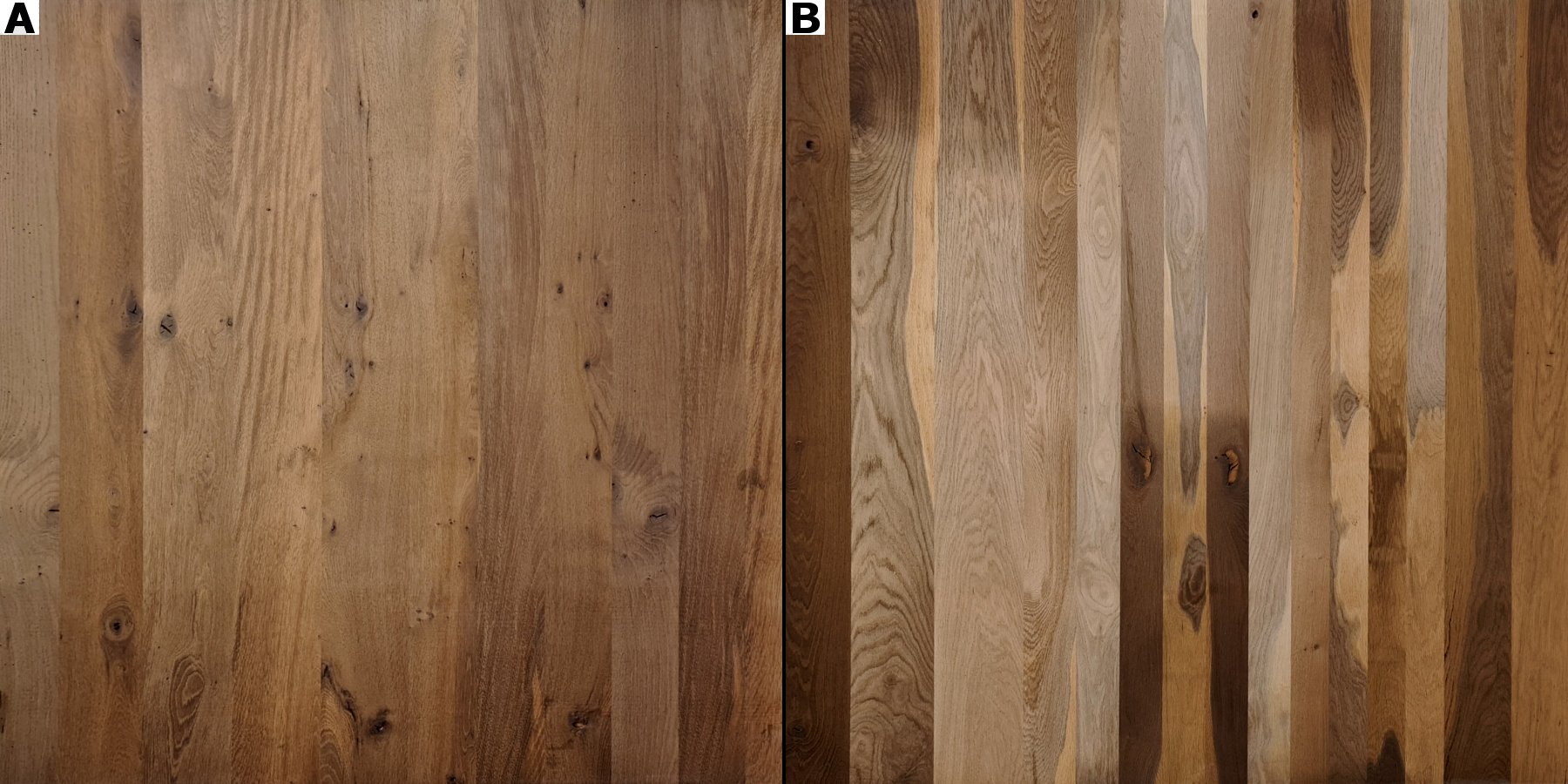

Click to see a typical 1250x1250mm panel face & reverse:

Fumed / Smoked Oak 'Triply' three-layer panel surface

Fumed/Smoked Oak A/B

Construction

Specially manufactured in minimum quantity of 5 per item, Fumed Oak / Smoked Oak Triply three-layer panels are constructed from 5mm thick, full-length Fumed / Smoked Oak faces bonded either side of a cross-banded 10mm or 16mm finger jointed core of the same species.

The faces are made from strips of random width of 50-140mm wide.

The Fumed / Smoked Oak strips making up the panel core and faces are bonded together with formaldehyde-free D4 exterior glue, and the faces calibrated to 80 grit before being protected with shrinkwrapping

The panels can be supplied as produced, or cut or machined to pattern. They can also be supplied prefinished with lacquer, oil, wax or special finishes as required.

Please click on the main Fumed / Smoked Oak page for details of the wood

Information

Technical details (general)

  • Construction:
    • Full length 5mm thick Fumed / Smoked Oak staves of random width (50-140mm wide) bonded to a cross-banded finger jointed core of the same species
  • Standard thickness:
    • 20mm (5mm/10mm/5mm)
    • 26mm (5mm/16mm/5mm)
  • Standard sizes:
    • 810x1250mm
    • 1250x1250mm
    • 1650x1250mm
    • 2050x1250mm
    • 2300x1250mm
    • 2500x1250mm
    • 2750x1250mm
    • 3000x1250mm
  • Special sizes:
    • In principle, any size can be produced up to the maximum stated above
  • Calibration:
    • Final sanding with 80 grit
  • Packaging:
    • Faces individually protected with shrinkwrapping
  • Tolerances:
    • Length/width: +5mm/-3mm
    • Thickness: ±0.2mm
    • (Others by arrangement)
  • Face grades:
    • A face / B reverse
    • Other grading by arrangement
  • Bonding Quality:
    • D4 - High moisture applications such as cladding
    • Formaldehyde (CAS # 50-00-0) is not intentionally used in the glue. However, trace levels (< 0.02%) may be present as a result of the specific characteristics of the raw materials and/or of the manufacturing process
  • Other features:
    • Other woods can be incorporated into the construction of the panel to achieve a decorative or contrasting effect
