High quality decorative products

Sculptured Panels - Crinkle

Sculptured Panel - Crinkle Pattern: Black, red & yellow through-coloured MDF, coated with clear satin lacquer
  • Special order item in exact quantity required
  • Minimum thickness = 19mm
  • Pattern height = approx 9mm
  • Pattern repeats on all edges at size 2400x1200mm
  • Grooved or laminate balancer bonded to reverse

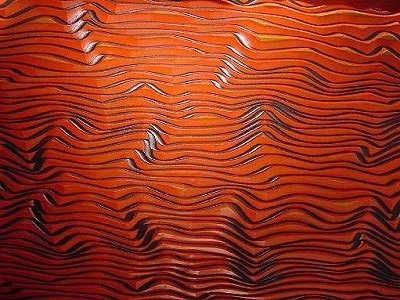

  • Crinkle shown in black, red & yellow through-coloured MDF, coated with clear satin lacquer


Crinkle is a composite panel of more than one colour based on Weave, which is a series of meandering lines machined into the face of to give a difference of approx 9mm between the highest and lowest points of the surface. It can be produced using a composite of minimum thickness 19mm

Although it is available in a range of materials and finishes, and can be produced in specific panel sizes & sets, Crinkle is typically supplied using coloured MDF in a standard panel size of 2400x1200mm

In detail

Because removing a lot of material from one side of any panel can cause it to cup towards the machined face, the panels are often ordered with a diamond pattern of relieving v-grooves machined into the reverse in order to help keep the panel as flat as possible.

Alternatively, a laminate can be bonded to the reverse or an additional panel such as 18mm MDF can be used in place of the laminate. This increases the overall thickness, but offers additional bulk to help with hidden fixings

This machined design repeats on a 2400x1200mm basis, but because this panel is constructed of multiple layers of different colours we would advise against classing these panels as a repeating set


Technical details (general)

  • Construction:
    • Multiple layers of through-coloured MDF with one surface machined to a deep, repeating pattern exposing the colours beneath
  • Pattern height:
    • Approx. 9mm
  • Standard thickness:
    • Minimum 19mm
  • Standard sizes:ul>
  • Produced to order in bespoke sizes
  • Pattern repeat:
    • 2400x1200mm
  • Special sizes:
    • Determined by material used and quantity required
    • In principle, panels can be supplied up to 3600x1500mm (subject to core availability)
  • Finishing:
    • All items can be supplied raw or coated with various coatings such as clear lacquer or oil
