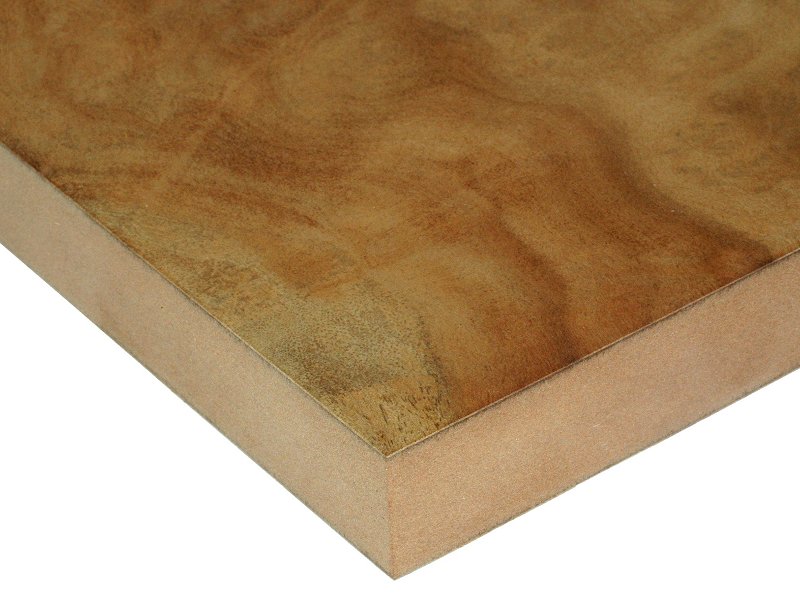

Veneered MDF

Premier Grade architectural veneered MDF can be made to order using any one of our range of 350+ veneers & inlays - or any other veneer specified, e.g. dyed veneers. These highly decorative panels are available in standard sizes (e.g. 2440x1220mm), although they are most often ordered in specific sizes as a bespoke bookmatched set.

Typical installations are high-quality bespoke kitchens, bedrooms, bathrooms, shopfitting & joinery.

We also offer Commercial Grades in pallet quantities of the more standard veneers where price is the main consideration.

Winwood Products is a supplier of the veneered MDF panels detailed below

• Quantity:
  • Premier GradeSupplied in standard size or as fully matched sets of architectural veneered panels to specific design, order quantity & layout
  • Merchant, Commercial Joinery & Superior gradesSupplied in full pallets (typically 25 sheets per item)
• Standard size:
  • 2440/2745/3050x1220mm
• Max size:
  • Premier GradeAny bespoke size up to max. 5300x1300mm / 3050x2440mm
    (subject to availability of core)
  • Superior GradeAny size up to max. 3670x1870 / 1870x3670mm
    (subject to availability of core)
• Thickness:
  • Premier Grade2mm to 60mm - dependent upon core material
    (composites up to 100mm)
  • Merchant, Commercial Joinery & Superior grades6mm to 30mm
• Panel types
  • Veneered standard MDF
  • Veneered moisture-resistant MDF / Veneered MR MDF
  • Veneered flame retardant MDF / Veneered FR MDF
  • Veneered through-coloured MDF
  • Veneered no-added formaledhyde MDF (Premier Grade only)
  • Veneered exterior MDF (Premier Grade only)
• Gluing:
  • Premier GradeFace veneers bonded using moisture-resistant glue as standard - other glues used to special order, e.g. exterior glue, formaldehyde-free, etc.
  • Merchant, Commercial Joinery & Superior gradesFace veneers bonded with interior glue
• Cut sizes:
  • Premier GradeCore material cut to size before veneers are applied to arrangement or design specified
  • Merchant, Commercial Joinery & Superior gradesFinished boards optimized & cut from standard panel size
• Edging:
  • Premier GradeConcealed solid lumber lipping or 2-ply veneer edging applied before calibration of faces & over-veneering
  • Merchant, Commercial Joinery & Superior gradesEdging can only be retro-fitted by customer. NB: This is not recommended unless unavoidable due to quality of finish, and shorter service life

• Quantity:
  • Premier Grade:Supplied in standard size or as fully matched sets of architectural veneered panels to specific design, order quantity & layout
  • Commercial & Superior Grades:Supplied in full pallets (typically 25 sheets per item)
• Standard size:
  • 2440x1220mm (column wrap)
  • 1220x2440mm (barrel wrap)
  • Other sizes possible if machined to order
• Max size:
  • Premier Grade:Available in any bespoke size up to max. size of core available)
  • Commercial & Superior Grades:Typically 3050x1220mm or 1220x3050mm
    (subject to availability of core)
• Thickness:
  • Typically 6 & 9mm (others by arrangement)
• Gluing:
  • Premier Grade:Face veneers bonded using moisture-resistant glue as standard - other glues used to special order, e.g. exterior glue, formaldehyde-free, etc.
  • Commercial gradeFace veneers bonded with interior glue
• Cut sizes:
  • Premier Grade:Core material cut to size before veneers are applied to arrangement or design specified
  • Commercial Grades:Finished boards optimized & cut from standard panel size
• Edging:
  • Not possible
• Finishing:
  • Flexible items need to be finished after installation

• Thickness
  • Subject to the core material used (typically ±0.2mm) plus veneer thickness
  • Premier Grade panels are calibrated before veneering to ensure best adhesion
• Veneer thickness
  • Most veneers are approx. 0.6mm before sanding - adds approx 0.5mm per side if presanded
  • Thicker veneers will typically finish approx. 0.3mm thinner than the original veneer thickness, e.g. 2.5mm veneers will add approx. 2.2mm per side if presanded
• Panel size
  • Standard size panels:See tolerances of core material chosen
  • Cut size/bespoke panels:Length/width: typically ±1mm unless CNC machined (typically ±0.2mm)
  • Non-standard tolerances by arrangement
