- Roller, spray & curtain coating processes
- Options at relatively low quantity
- Paint, lacquer or primer coating
- Multiple core material types
- Most common size: 2440x1220mm (or similar)
- Special sizes up to 3700x1800mm / 3120x2030mm (longer if scarf jointed)
Overview

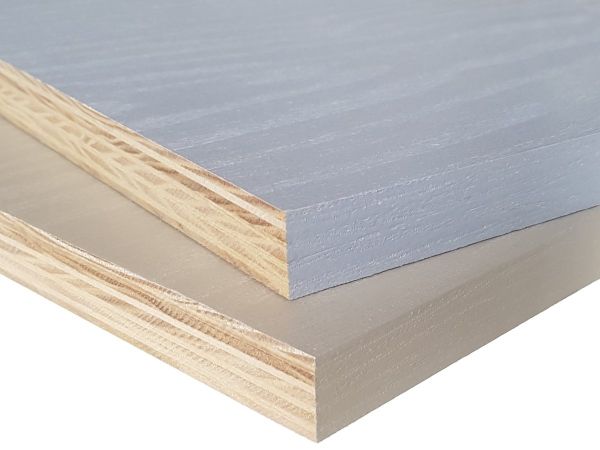

All manner of different plywoods can be coated with a variety of lacquered, painted & primed finishes to match your required colour or finish. (The surface finish can be sprayed, curtain coated or roller/brush applied.)
In order to gain a more uniform and even surface a specially engineered paper overlay can often be applied over the plywood face prior to painting.
Our primed lightweight poplar plywood can be used as the substrate for improved surface finish.
Typical core options
Winwood Products is a supplier of prefinished plywood offering the following configurations / options:
- Tropical hardwood plywood (for lowest cost & utility applications such as hoardings)
- Lightweight poplar plywood
- Birch plywood
- Marine grade okoume plywood
- Beech plywood
- Fineline striped plywood
- Decorative veneered plywood
- Cut to size and/or special profile/shape prior to (or after) painting
Colour systems
- RAL Classic
- BS 4800
- BS 381
- NCS (*)
- Pantone (*)
- Farrow & Ball (*)
- Can also be supplied to match a particular sample supplied by you
- Also available as painted MDF
(*) opens in new window
Technical details
- Thickness
- 3-40mm - thicker by arrangement
- Standard sizes
- Dependent upon product, typically 2440x1220mm, 2500x1220mm, 2550x1250mm with some also 3050x1220mm/1525mm
- Special sizes
- Other sizes available, subject to agreement up to maximum 3700x1800mm / 3120x2030mm
- Tolerances
- Typically as per EN 315 (others by arrangement)
- Finish types
- 'Dead Matt' (<5% sheen)
- Matt (5-10% sheen)
- Satin (20-40% sheen)
- Gloss (50-70% sheen)
- High Gloss (>70%-90% sheen - clear lacquer finish achieved by burnishing)
- Coating processes
- Roller/brush applied
- Sprayed
- Curtain coated
- Other options
- Face of panel can often be coated with paper prior to painting to achieve a more uniform surface finish
- Performance
- EN 636-1 - Interior usage & minimal exposure to moisture
- EN 636-2 - Covered exterior usage, e.g. soffits & behind cladding
- EN 636-3 - Fully exposed exterior usage, e.g. exterior hoardings
